As a biomass energy equipment engineer with over 15 years of experience at Huaxin Machinery, I’ve led the design and installation of 150+ biomass briquette production lines worldwide. From small-scale 1-ton/hour lines for rural cooperatives to large 10-ton/hour industrial plants, I’ve seen firsthand how proper biomass briquette production line configuration directly impacts biomass briquette production efficiency, biomass briquette quality, and long-term profitability. In this guide, I’ll share my practical insights and technical expertise to help you design a high-performance biomass briquette production line tailored to your raw materials, capacity goals, and budget—whether you’re looking for small scale biomass briquette production line or industrial biomass briquette production line.

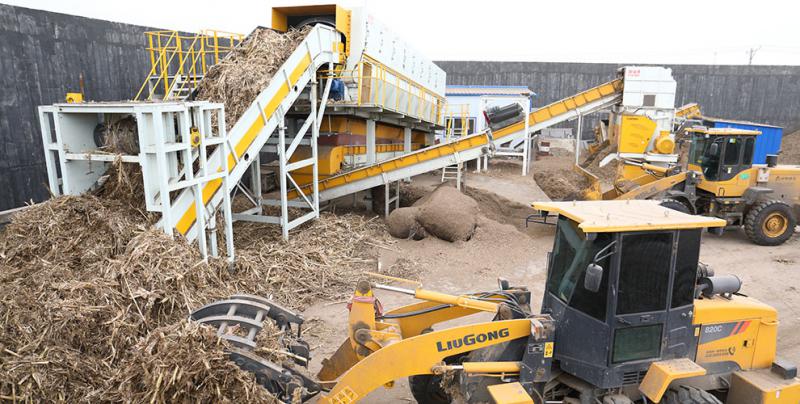

What Is a Biomass Briquette Production Line?
A biomass briquette production line is a systematic assembly of interconnected equipment that converts loose agricultural and forestry residues (such as wood chips, sawdust, rice husks, straw, and bagasse) into dense, uniform, high-energy biomass briquettes. Unlike standalone biomass briquette machine, a complete line ensures continuous, automated, and efficient biomass briquette production with minimal manual intervention—critical for meeting the growing demand for renewable biomass fuel.
The core value of a well-configured biomass briquette production line lies in its ability to:
- Utilize low-cost, renewable agricultural waste and forestry residues as fuel, reducing reliance on fossil fuels
- Produce high-density biomass briquettes (density: 0.8–1.2 g/cm³) with high calorific value (3500–4500 kcal/kg), ideal for industrial heating and power generation
- Reduce biomass waste volume by 70–90% for easy storage and transportation, cutting logistics costs
- Meet international biomass briquette quality standards for industrial, commercial, and residential use
Core Components of a Biomass Briquette Production Line
Based on my engineering experience, a standard biomass briquette production line consists of six essential modules, each with specific equipment and technical requirements that directly influence biomass briquette production efficiency. Let’s break down each component in detail—key for optimizing your biomass briquette production line configuration:
1. Raw Material Preprocessing System
The foundation of high-quality biomass briquettes is properly prepared raw materials. This system handles initial sizing and impurity removal to ensure uniform feed for downstream processes— a common oversight in poor biomass briquette production line configuration.
Key Equipment:
- Biomass chipper/crusher: Reduces large raw materials (wood logs, branches, corn stalks) into 3–5 mm biomass particles. For soft materials like straw, a hammer mill for biomass is ideal; for hard wood, a high-speed biomass chipper works best.
- Magnetic separator for biomass processing: Removes metal impurities (nails, wires) to protect downstream biomass briquette machine from damage, reducing maintenance costs.
- Vibrating screen for biomass: Classifies particles to ensure consistent size, eliminating oversize or undersize material that can disrupt biomass briquette forming.
Critical Parameter: Raw material size must be 3–5 mm; larger particles cause uneven pressing, while smaller particles increase dust and reduce biomass briquette density—a key factor in biomass briquette quality.
2. Drying System
Raw materials typically have a moisture content of 25–60% (depending on source). For successful biomass briquetting, moisture must be reduced to 12–15%—the “golden range” for optimal biomass briquette成型率 and strength. This is one of the most critical steps in biomass briquette production line configuration for consistent results.
Key Equipment:
- Rotary drum dryer for biomass: The most common choice for large-scale biomass briquette production. A three-pass design maximizes heat transfer, reducing moisture efficiently while minimizing energy consumption—critical for energy-efficient biomass briquette line.
- Biomass hot air furnace: Uses waste biomass (briquette fines, sawdust) as fuel to generate hot air for drying, creating aself-sustaining biomass energy loop that cuts operational costs.
- Moisture sensor for biomass drying: Automatically monitors and adjusts drying output to maintain consistent moisture content, preventing issues with biomass briquette cracking or mold growth.
Critical Parameter: Moisture content 12–15%; above 18% causes biomass briquette cracking and mold growth; below 10% leads to excessive dust and low density—common mistakes in biomass briquette production line setup.
3. Briquetting (Forming) System
This is the heart of the biomass briquette production line, where processed raw materials are compressed into dense biomass briquettes under high pressure and temperature. Choosing the rightbiomass briquette machine is make-or-break for your biomass briquette production line configuration.
Key Equipment:
- Ring die biomass briquette machine: The industry standard for industrial biomass briquette production. It uses a rotating ring die and pressure rollers to compress material into hollow or solid biomass briquettes (diameter: 50–80 mm). At Huaxin Machinery, our ring die machines feature custom biomass compression ratios (5:1 to 10:1) tailored to raw material type— a key advantage for custom biomass briquette line.
- Screw extruder for biomass briquette: Ideal for small scale biomass briquette production line or low-budget projects. It uses a screw to push material through a heated die, forming hollow rod-shaped biomass briquettes.
- Heating system for biomass briquetting: Maintains die temperature at 260–300°C to soften lignin in biomass, which acts as a natural binder (no additives required)—reducing biomass briquette production cost.
Critical Parameter: Compression ratio 5:1 to 10:1 (higher for hard wood, lower for soft straw); die temperature 260–300°C—optimized for high-quality biomass briquettes.
4. Cooling & Screening System
Freshly pressed biomass briquettes exit the machine at 80–100°C and are soft. This system cools and hardens them while removing fines and defective products—essential for maintaining biomass briquette quality and reducing waste in your biomass briquette production line.
Key Equipment:
- Counterflow cooler for biomass briquettes: Uses ambient air to cool briquettes to room temperature (25–35°C), increasing hardness and stability—critical for biomass briquette storage.
- Vibrating screen for biomass briquettes: Separates finished biomass briquettes from dust and broken pieces. Fines are recycled back to the biomass briquette machine for reprocessing, maximizing yield.
Critical Parameter: Cooling time 15–20 minutes; final temperature <40°C to prevent deformation during biomass briquette storage and transportation.
5. Packaging & Storage System
This system packages finished biomass briquettes for sale or storage, ensuring product integrity and easy handling—often overlooked in biomass briquette production line configuration but critical for marketability.
Key Equipment:
- Automatic weighing & packing machine for biomass briquettes: Packages briquettes in25–50 kg bags or 1-ton bulk bags (tote bags). Features high-precision weighing (±0.5%) and auto-sealing—ideal for commercial biomass briquette sales.
- Belt conveyor for biomass briquettes: Transports packaged briquettes to storage areas or loading docks, reducing manual labor and increasing efficiency.
- Dust collector for biomass processing: Captures fine dust from packaging to maintain a clean working environment and comply with environmental regulations for biomass production.
6. Intelligent Control System
A modern biomass briquette production line relies on a PLC-based centralized control system to monitor and automate all processes, ensuring stability and reducing human error— a key feature of high-efficiency biomass briquette line configuration.
Key Features:
- Touchscreen interface for biomass line control: Real-time monitoring of temperature, moisture, pressure, and biomass briquette production speed.
- Automatic alarm system for biomass equipment: Alerts operators to faults (blockages, overheating, low pressure) with visual and audio signals, minimizing downtime.
- Remote monitoring for biomass production line: Allows engineers to diagnose and resolve issues remotely, reducing maintenance costs and downtime— a key benefit of modern biomass briquette line.
- Energy management for biomass line: Optimizes power consumption across all equipment, reducing operational costs by 10–15%—critical for cost-effective biomass briquette production.

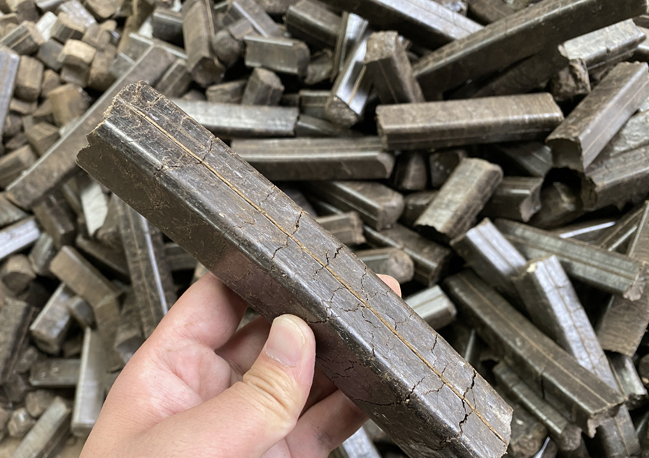

Step-by-Step Workflow of a Biomass Briquette Production Line
After designingdozens of biomass briquette line layouts, I’ve refined the optimal workflow for maximum efficiency— a proven framework for effective biomass briquette production line configuration. Here’s a step-by-step breakdown:
- Raw Material Reception: Wood chips, straw, or other biomass residues are delivered to the plant and stored in a covered yard or silo to prevent moisture absorption—critical for consistent biomass briquette quality.
- Preprocessing: Material is fed into a biomass crusher to reduce size to 3–5 mm, then passed through a magnetic separator to remove metal impurities that could damage equipment.
- Drying: Crushed material is conveyed to a rotary drum dryer, where hot air reduces moisture to12–15%—the optimal range for biomass briquetting.
- Briquetting: Dried material is fed into the ring die briquette machine. Under high pressure (100–150 bar) and temperature （260–300°C), lignin softens and binds particles into dense biomass briquettes.
- Cooling & Screening: Hot briquettes are transported to a counterflow cooler, then screened to remove fines and defective products—maximizing yield of high-quality biomass briquettes.
- Packaging: Finishedbiomass briquettes are weighed and packaged in bags or bulk totes, ready for sale or storage.
- Storage & Shipping: Packaged briquettes are stored in a dry warehouse or loaded onto trucks for delivery—ensuring product integrity during biomass briquette transportation.
Key Factors for Custom Biomass Briquette Production Line Configuration
There’s no “one-size-fits-all” biomass briquette production line. Based on my experience, these five factors determine the optimal configuration for your project—whether you’re building a small scale biomass briquette line or anindustrial biomass briquette plant:
1. Raw Material Type
Different biomass raw materials require different equipment and settings— a critical consideration for custom biomass briquette line configuration:
- Hard Wood (Pine, Oak): High density, high lignin content. Use a ring die machine with 8:1–10:1 compression ratio and high-wear alloy dies—optimized for hard wood biomass briquettes.
- Soft Straw (Wheat, Corn): Low density, low lignin content. Use a hammer mill for crushing and a ring die machine with 5:1–6:1 compression ratio—ideal for straw biomass briquette production.
- Rice Husk/Bagasse: High ash content, low density. Add a pre-cleaning screen and use a screw extruder for cost-effective rice husk biomass briquette production.
2. Production Capacity
Capacity determines equipment size and line layout— a key factor in biomass briquette production line configuration:
- Small-Scale (1–2 tons/hour): Compact line with screw extruder, single-pass dryer, and manual packaging. Ideal for rural areas or small businesses looking for affordable biomass briquette production.
- Medium-Scale (3–5 tons/hour): Standard line with ring die machine, three-pass dryer, and semi-automatic packaging. The most popular configuration for commercial biomass briquette production.
- Large-Scale (6–10 tons/hour): High-capacity line with multiple ring die machines, large rotary dryer, and fully automatic packaging. Suitable for industrial plants or export-oriented businesses focused on large-scale biomass fuel production.
3. Budget Constraints
Balancing cost and performance is critical for biomass briquette production line configuration—here’s how to optimize for your budget:
- Low Budget: Prioritize core equipment (crusher, dryer, screw extruder); opt for manual packaging and basic control systems—ideal for small scale biomass briquette startup.
- Mid Budget: Invest in a ring die machine (higher efficiency and durability); add semi-automatic packaging and PLC control—optimal for commercial biomass briquette business.
- High Budget: Fully automated line with remote monitoring, energy-efficient motors, and high-wear components for minimal maintenance—perfect for industrial biomass briquette plant with high production goals.
4. Local Climate & Environment
Climate affects drying requirements and equipment durability— often overlooked in biomass briquette production line setup:
- Humid Regions: Add a dehumidifier to the drying system; use corrosion-resistant materials for equipment—critical for biomass line durability in humid areas.
- Dry Regions: Reduce dryer capacity (lower initial moisture); focus on dust control for biomass production to prevent air pollution and comply with regulations.
5. Quality Standards
Target market determines quality requirements— a key factor in biomass briquette production line configuration:
- Domestic Industrial Use: Standard density (0.8–1.0 g/cm³), low ash content (<8%)—suitable for industrial biomass heating.
- Export (EU/US): High density (1.0–1.2 g/cm³), low moisture (<12%), low sulfur (<0.5%), and strict size uniformity—meeting international biomass briquette standards for export.
Common Mistakes to Avoid in Biomass Briquette Production Line Configuration
Over the years, I’ve seen many projects fail due to avoidable configuration errors. Here are thetop three mistakes and how to prevent them—critical for maximizingbiomass briquette production efficiency and ROI:
1. Ignoring Raw Material Preprocessing
Many new investors skip proper crushing and screening, thinking “any material works.” This leads to uneven biomass briquettes, frequent machine blockages, and low biomass briquette production efficiency. Always prioritize preprocessing to ensure consistent raw material size and quality— a foundational step in effective biomass briquette line configuration.
2. Underestimating Drying Capacity
Moisture control is the most critical factor for biomass briquette quality. A dryer that’s too small will leave material too wet, causing biomass briquette cracking and mold. Always size the dryer to handle 120% of your maximum hourly capacity to account for fluctuations in raw material moisture— a key tip for reliable biomass briquette production.
3. Choosing the Wrong Briquetting Machine
Screw extruders are cheap but low efficiency (1–2 tons/hour) and high maintenance for hard materials. Ring die machines cost more upfront but offer higher efficiency (3–10 tons/hour), longer service life, and better biomass briquette quality. For commercial production, always invest in a ring die briquette machine— the best choice for high-performance biomass briquette line.

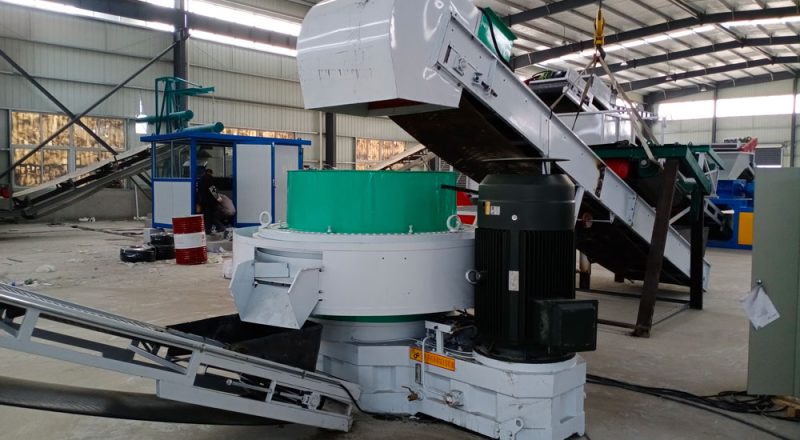

Huaxin Machinery’s Custom Biomass Briquette Production Line Configuration Services
At Huaxin Machinery, we don’t just sell equipment—we provide turnkey biomass briquette solutions tailored to your unique needs. Our process includes everything you need for a successful biomass briquette production line configuration:
- Raw Material Testing: We analyze your biomass raw materials (moisture, density, lignin content) to recommend optimal equipment and settings— ensuring your line is tailored to your specific feedstock.
- Custom Layout Design: Our engineers design a space-efficient workflow layout that maximizes productivity and minimizes operational costs— optimized for your biomass briquette production capacity.
- Equipment Manufacturing: We produce high-quality, durable equipment with ISO 9001 certification and strict quality control— including ring die briquette machines, dryers, and crushers built for long-term use.
- Installation & Commissioning: Our technicians provide on-site installation, training, and testing to ensure your line runs smoothly from day one— reducing downtime and ensuring you get the most out of your biomass briquette production line.
- After-Sales Support: We offer 24/7 technical support, spare parts supply, and maintenance services to minimize downtime and maximize ROI— a key benefit of partnering with Huaxin Machinery for your biomass project.
FAQ
Q1: What raw materials can be used in a biomass briquette production line?
A: A wide range of agricultural waste and forestry residues, including wood chips, sawdust, rice husks, wheat straw, corn stalks, bagasse, coconut shells, and coffee grounds— all suitable for biomass briquette production.
Q2: What is the typical lifespan of a biomass briquette production line?
A: With proper maintenance, 15–20 years. Key components (dies, rollers) need replacement every 6–12 months, while motors and structural parts last10+ years— ensuring long-term value for your biomass briquette investment.
Q3: How much space is needed for a biomass briquette production line?
A: Small-scale (1–2 tons/hour): 500–1000 m²; medium-scale (3–5 tons/hour): 1500–3000 m²; large-scale (6–10 tons/hour): 4000–6000 m² (including raw material storage and finished product warehouse)— a key consideration for biomass line layout.
Q4: What is the energy consumption per ton of biomass briquettes?
A: 60–100 kWh/ton (varies with raw material and line efficiency). Modern energy-efficient biomass briquette lines can reduce consumption to 50–60 kWh/ton— cutting operational costs.
Q5: Do I need additives to make biomass briquettes?
A: No. Biomass contains lignin, which softens under heat and pressure to act as a natural binder. Additives are only required for low-lignin materials (e.g., rice husks) or special applications— reducing biomass briquette production cost.
Q6: What is the production yield (percentage of good biomass briquettes)?
A: With proper biomass briquette production line configuration and operation, 95–98%. Fines and defective products are recycled back into the production process, minimizing waste and maximizing biomass briquette yield.
Q7: How long does it take to install and commission a biomass briquette line?
A: Small-scale: 2–4 weeks; medium-scale: 4–8 weeks; large-scale: 8–12 weeks (including equipment delivery, installation, training, and testing)— ensuring a quick start to biomass briquette production.
Q8: What is the return on investment (ROI) for a biomass briquette production line?
A: Typically 1.5–3 years (varies with capacity, raw material cost, and selling price). High-efficiency lines with low operational costs can achieve ROI in 1–2 years— a strong return for biomass energy investment.
Q9: Can the line be upgraded for higher capacity in the future?
A: Yes. Our modular design allows for phased upgrades (e.g., adding a second briquette machine or larger dryer) to increase capacity as your business grows— flexible for your biomass briquette business expansion.
Q10: What safety measures are required for a biomass briquette production line?
A: Key safety measures include dust explosion protection (dust collectors, explosion vents), fire suppression systems, emergency stop buttons, and operator training in safe equipment operation— ensuring compliance with biomass production safety regulations.
