As a senior engineer at Huaxin Machinery with 12+ years specializing in biomass pellet plant design, I’ve led 40+ turnkey projects across 18 countries—from 1TPH small-scale farms to 25TPH industrial export facilities. Today, I’ll share proven biomass pellet factory layout design principles, pellet plant zoning strategies, and cost-saving tips for biomass plant layout that directly impact your plant’s productivity, safety, and long-term profitability. A well-designed biomass pellet production line layout can boost operational efficiency by 20-30%, reduce labor costs by 15-25%, and minimize safety risks—making it the foundation of a successfulbiomass pellet business.
Why Biomass Pellet Factory Layout Design Matters
Many investors focus solely on biomass pellet equipment quality while underestimating layout’s critical role. In my experience, poor biomass pellet factory layout design causes 60% of common plant operational issues: frequent material bottlenecks, high dust pollution, inefficient workflows, safety hazards, and even production shutdowns. A scientific pellet plant layout aligns with the core goals of biomass pellet production:
- Smooth Process Flow: Linear or compact workflow minimizing material handling distance for small scale biomass pellet plant and industrial facilities alike
- Max Space Utilization: Optimize zoning to avoid wasted space (reserve 10-15% for future expansion of biomass pellet production line)
- Safety & Compliance: Strict separation of hazard zones, biomass pellet plant dust control, and fire prevention forindustrial biomass pellet factory
- Cost Efficiency: Reduce labor, energy, and maintenance costs through streamlined biomass pellet plant operations
- Scalability: Layout adaptable to capacity upgrades (e.g., 5TPH → 10TPH) without major reconstruction of biomass pellet factory

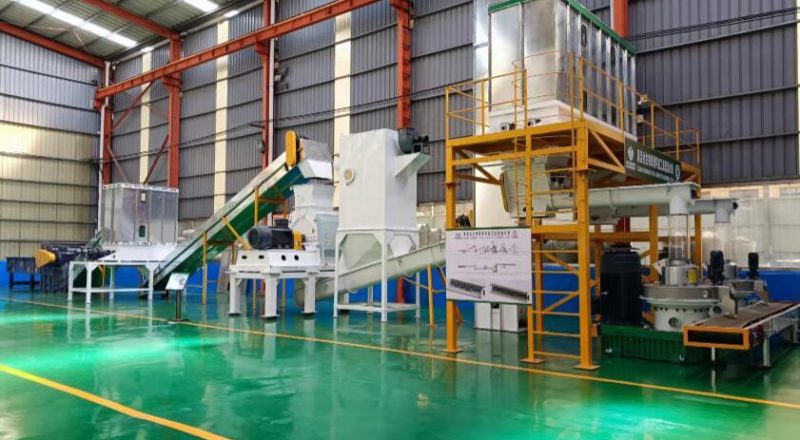

Core Principles of Biomass Pellet Factory Layout Design
After decades of on-site practice, I’ve summarized 5 non-negotiable principles for biomass pellet plant layout that guide all our Huaxin Machinery projects:
1. Process Flow First: Linear & Unobstructed
The biomass pellet factory layout must follow the natural biomass pellet production sequence: Raw Material Storage → Pre-treatment (Crushing/Sieving) → Drying → Pelletizing → Cooling → Screening → Packaging → Finished Product Storage. We always prioritize straight-line flow for biomass pellet plant to avoid backtracking or cross-traffic, which cuts material transit time by 30% and reduces equipment wear. Forsmall scale biomass pellet plant (1-2TPH), a vertical compact biomass pellet plant layout (stacking pelletizing/cooling/screening) saves space; for large industrial biomass pellet factory (10+TPH), parallel lines for biomass production line ensure continuous production.
2. Zoning Clarity: Functional Separation
Divide the biomass pellet factory into distinct functional zones for pellet plant with clear boundaries—this is critical for safety, dust control, and workflow efficiency. Industry-standard zoning ratios (of total area) for biomass pellet factory layout design:
- Raw Material Storage: 25-30% (segregate by moisture/content; moisture-proofing essential for agricultural waste biomass pellet plant)
- Production Area: 40-50% (crushing, drying, pelletizing, cooling, screening—core of biomass pellet production line layout)
- Finished Product Storage: 15-20% (easy loading/unloading; fire-resistant design for wood pellet factory layout)
- Office & Auxiliary Areas: 5-10% (control room, maintenance, staff facilities for biomass pellet plant operations)
- Logistics & Fire Lanes:10-15% (separate vehicle/pedestrian traffic; ≥5m fire spacing for safe biomass pellet factory layout)
3. Safety & Environmental Compliance: Non-Negotiable
Biomass pellet production involves dust, high temperature, and fire risks—safety must be embedded in every biomass pellet factory layout design decision:
- Dust Control: Locate crushing/grinding zones downwind; install centralized dust collection for biomass pellet plant (≥99% efficiency)
- Fire Safety: Separate torrefaction/drying zones from pelletizing/packaging (≥10m); install explosion-proof equipment for biomass pellet factory
- Ventilation: Ensure 3-5 air changes/hour in production areas; avoid dead zones for dust accumulation in biomass pellet plant layout
- Emergency Access: Clear 2m-wide aisles; multiple emergency exits; centralized safety control room for industrial biomass pellet plant
4. Logistics Optimization: Minimize Material Handling
Material transportation is the biggest hidden cost in biomass pellet production—our biomass pellet factory layout design cuts handling distance by 40% compared to industry averages:
- Raw material storage adjacent to pre-treatment zone (avoid long conveyor runs for biomass pellet production line)
- Finished product storage near factory exit (reduce loading time by 15% for export-grade biomass pellet plant)
- Ring roads for vehicle circulation (separate incoming raw material trucks from outgoing product trucks in large biomass pellet factory)
- Forklift/pedestrian traffic separation (reduce accident risk by 20% in small scale biomass pellet plant)
5. Scalability & Flexibility: Future-Proof Your Plant
A good biomass pellet factory layout isn’t just for current capacity—it supports future growth of biomass pellet production line:
- Reserve 10-15% space for additional production lines or biomass pellet equipment upgrades
- Modular design (e.g., pre-built foundations for future dryers/pellet mills in biomass pellet factory layout)
- Adaptable zoning (e.g., raw material storage can convert to production area if needed for scalable biomass pellet plant)
Step-by-Step Biomass Pellet Factory Layout Design
Based on our Huaxin Machinery project workflow, here’s a practical 6-step guide to biomass pellet plant layout design to designing your layout:
Step 1: Site Selection & Assessment
Before drafting biomass pellet factory layouts, evaluate your site against these critical criteria for optimal biomass pellet plant location:
- Raw Material Proximity: Within 50km of abundantbiomass sources (wood chips, straw, rice husk, EFB) to cut transport costs for biomass pellet production
- Transportation: Near highways/ports; flat terrain (≤3% slope); ground load capacity ≥5t/m² for industrial biomass pellet factory
- Utilities: Stable power supply (transformer ≥500kVA for 3TPH); water access; wastewater discharge permits for eco-friendly biomass pellet plant
- Environment: Downwind from residential areas; flood-free zone (elevate 300mm above flood level) for safe biomass pellet factory layout
- Local Regulations: Compliance with zoning laws, environmental permits, and safety standards for biomass pellet factory design
Step 2: Capacity & Process Flow Design
Define your biomass pellet production capacity (TPH) and raw material type—this dictates biomass pellet equipment selection and layout scale:
- Small (1-2TPH): Compact biomass pellet plant layout; single production line; 300-600m² space; ideal for small farm biomass pellet plant/small businesses
- Medium (3-5TPH): Standard linear biomass pellet factory layout; single line with automated handling; 1000-3000m²; forcommercial biomass pellet producers
- Large (10+TPH): Industrial biomass pellet plant layout; 2-6 parallel lines; 5000-8000m²+; for export/utility-scale biomass pellet factory
Key Process Flow for Biomass Pellet Production: Raw Material → Crushing (3-5mm particles) → Sieving → Drying (moisture 8-12%) → Pelletizing (115-130°C) → Cooling (25-30°C) → Screening → Packaging → Storage
Step 3: Functional Zoning & Equipment Arrangement
Now design each zone with precision—here’s our Huaxin Machinery standard arrangement for biomass pellet factory layout design:
1. Raw Material Storage Zone
- Location: Northwest corner (downwind); adjacent to crushing zone for efficient biomass pellet production
- Design: Open yard + covered warehouse; segregate by moisture (wet/dry); moisture-proof flooring for agricultural waste biomass storage
- Equipment: Forklifts, belt conveyors, metal detectors (remove nails/iron) for biomass raw material handling
2. Pre-treatment Zone (Crushing/Sieving)
- Location: Between raw material storage and drying zone; downwind to minimize dust spread in biomass pellet plant layout
- Equipment: Hammer mills (crush to 3-5mm), vibrating sieves (remove oversize/undersize particles) for biomass pre-treatment
- Safety: Dust collectors, noise barriers, fire extinguishers forsafe biomass pre-treatment zone
3. Drying Zone
- Location: Outdoor or well-ventilated area; separate from pelletizing zone (fire risk) in biomass pellet factory layout
- Equipment: Rotary dryers (for high-moisture raw materials >20%); biomass-fired hot air generators for biomass drying process
- Safety: Explosion-proof design, temperature monitoring, emergency shutdown systems for safe biomass drying zone
4. Pelletizing Zone (Core Production)
- Location: Central production area; easy access for maintenance in biomass pellet factory layout
- Equipment: Ring die pellet mills (core equipment), lubrication systems, cooling water systems for biomass pelletizing process
- Layout: Straight-line arrangement; 1.5m clearance around mills for operation/maintenance of biomass pellet mill
5. Cooling & Screening Zone
- Location: Adjacent to pelletizing zone; pellets move directly from mills to coolers in biomass pellet production line
- Equipment: Counterflow coolers (reduce temp to 25-30°C), vibrating screens (remove fines/broken pellets) for biomass pellet cooling and screening
6. Packaging & Finished Product Storage
- Packaging Zone: Near finished product storage; automated packaging machines (50kg bags/1ton jumbo bags) for biomass pellet packaging
- Finished Product Storage: Southeast corner (near factory exit); fire-resistant warehouse; palletized storage forfinished biomass pellets
7. Auxiliary Zones
- Control Room: Separate building (10-20m from production area); centralized monitoring of all biomass pellet equipment
- Maintenance Workshop: Near production area; tool storage, spare parts, repair equipment for biomass pellet plant maintenance
- Office & Staff Facilities: South side of factory; separate from production areas (minimize dust/noise exposure in biomass pellet factory)

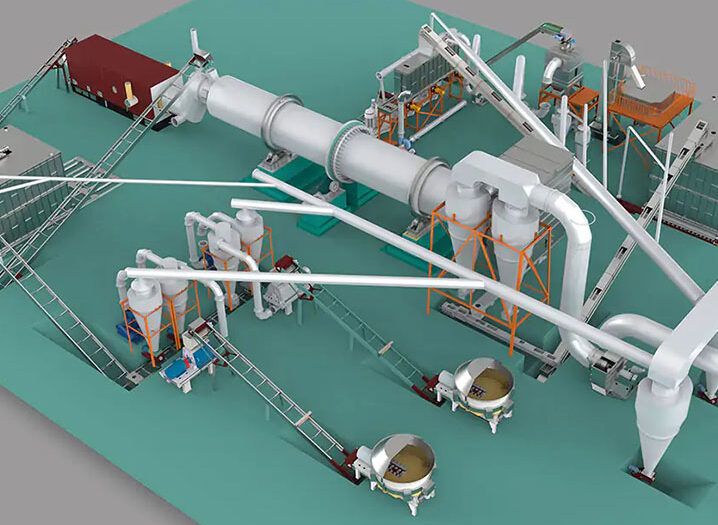

Step 4: 3D Layout Modeling & Simulation
At Huaxin Machinery, we use 3D modeling software for biomass pellet plant layout to create a virtual layout before construction:
- Simulate material flow to identify bottlenecks in biomass pellet production line
- Check biomass pellet equipment clearance and maintenance access
- Optimize logistics routes for forklifts/vehicles in biomass pellet factory layout
- Adjust zoning for safety and compliance in biomass pellet plant design
- Present 3D renderings to clients for feedback on custom biomass pellet factory layout
Step 5: Safety & Environmental Optimization
Safety is non-negotiable—we implement these critical measures in all biomass pellet factory layouts:
- Dust collection system covering crushing, pelletizing, and screening zones (≥99% efficiency) for biomass pellet plant dust control
- Fire safety: Sprinkler systems, fire extinguishers, fire doors, clear fire lanes for safe biomass pellet factory
- Explosion protection: Explosion vents, pressure relief valves, spark detection systems for biomass pellet plant explosion safety
- Ventilation: Industrial fans, air circulation systems, dust removal ducts for ventilated biomass pellet plant
- Noise control: Soundproofing walls, noise barriers around crushers/dryers in low-noise biomass pellet factory
Step 6: Final Layout Approval & Implementation
After client approval, we provide detailed construction drawings for biomass pellet factory, equipment foundation plans for biomass pellet plant, and installation guidelines for biomass pellet equipment. Our engineers supervise on-site construction and equipment installation to ensure the biomass pellet factory layout is implemented as designed.
Biomass Pellet Factory Layout Examples (Huaxin Machinery Projects)
Let’s look at 3 real-world biomass pellet factory layout examples from our projects to illustrate different scales:
Example 1: 2TPH Small-Scale Plant (Farm Use)
- Total Area: 450m² (30m × 15m)
- Layout: Compact vertical small scale biomass pellet plant layout
- Zones: Raw material storage (100m²) → Crushing/sieving (80m²) → Drying (outdoor, 50m²) → Pelletizing/cooling/screening (120m²) → Packaging/storage (100m²)
- Key Feature: Low cost, fast installation (15 days), easy operation (2-3 workers) for farm biomass pellet plant
Example 2: 5TPH Medium-Scale Plant (Commercial Use)
- Total Area: 2800m² (70m × 40m)
- Layout: Standard linear commercial biomass pellet factory layout
- Zones: Raw material storage (800m²) → Pre-treatment (500m²) → Drying (400m²) → Pelletizing (600m²) → Cooling/screening (300m²) → Packaging/storage (600m²) → Office/auxiliary (200m²)
- Key Feature: Automated conveyor systems, centralized control room, 24/7 operation (6-8 workers) for commercial biomass pellet production

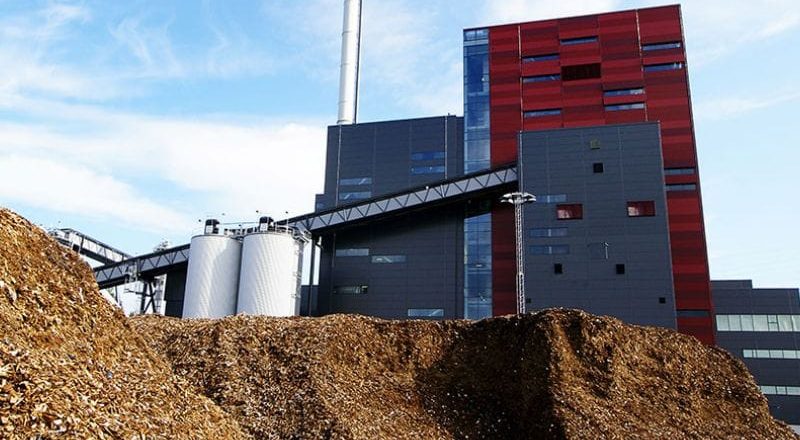

Example 3: 15TPH Large-Scale Plant (Export Use)
- Total Area: 7500m² (100m × 75m)
- Layout: Industrial parallel line export-grade biomass pellet factory layout (2 × 7.5TPH lines)
- Zones: Raw material storage (2000m²) → Pre-treatment (1200m²) → Drying (1000m²) → Pelletizing (1500m²) → Cooling/screening (800m²) → Packaging/storage (800m²) → Office/auxiliary (200m²)
- Key Feature: Automated raw material handling, bulk loading system, ISO certification, export-grade pellets for international biomass pellet market
Common Mistakes to Avoid in Biomass Pellet Factory Layout Design
From our 12+ years of experience, these are the most frequent biomass pellet plant layout mistakes that hurt productivity and profitability:
- Ignoring Raw Material Moisture: High-moisture raw materials (>20%) require larger drying zones—skipping this causes production bottlenecks in biomass pellet production line
- Inadequate Dust Control: Poor dust collection leads to air pollution, equipment damage, and fire risks in biomass pellet factory
- Narrow Aisles & Poor Access: Cramped spaces hinder maintenance and increase accident risk inbiomass pellet plant layout
- No Future Expansion Space: Layouts without room for upgrades become obsolete as demand grows for scalable biomass pellet plant
- Poor Logistics Planning: Long material handling routes increase labor costs and reduce efficiency in biomass pellet factory layout design
- Ignoring Local Climate: Wind direction, rainfall, and temperature impact zoning and equipment placement in biomass pellet plant
FAQ: Biomass Pellet Factory Layout Design
Q1: How much space do I need for a biomass pellet plant?
A: Small (1-2TPH): 300-600m²; Medium (3-5TPH): 1000-3000m²; Large (10+TPH): 5000m²+. This varies based on biomass pellet production capacity and layout design.
Q2: What’s the ideal raw material moisture content for pelletizing?
A: 8-12%—moisture above 12% causes weak pellets; below 8% increases energy consumption and dust. This is critical for efficient biomass pellet production.
Q3: How far should the drying zone be from the pelletizing zone?
A: Minimum 10m to reduce fire risk; separate buildings recommended for large industrial biomass pellet factory layout.
Q4: Can I use an existing factory building for my pellet plant?
A: Yes—we design custom biomass pellet factory layouts to adapt to existing structures (check floor load capacity, height, and ventilation for biomass pellet equipment).
Q5: What safety certifications do I need for my pellet plant layout?
A: Compliance with ISO 9001, ISO 14001, and local fire/safety codes; explosion-proof equipment for dust zones in biomass pellet factory.
Q6: How long does it take to design and build a biomass pellet plant?
A: Small plant: 30-45 days; Medium plant: 60-90 days; Large plant: 120-180 days (including design, construction, installation, and commissioning of biomass pellet production line).
Q7: What’s the best layout for raw materials with high moisture (e.g., 50% wood chips)?
A: Larger drying zone with multiple rotary dryers; outdoor drying area for pre-drying; separate wet/dry raw material storage in biomass pellet factory layout.
Q8: How do I optimize my layout for low labor costs?
A: Automated conveyor systems, centralized control room, and compact zoning to minimize material handling and worker movement in biomass pellet plant layout.
Q9: What’s the difference between linear and compact layout?
A: Linear: Straight-line flow for medium/large biomass pellet factory (efficient, easy maintenance); Compact: Vertical stacking for small scale biomass pellet plant (space-saving, lower cost).
Q10: How do I handle dust in my pellet plant layout?
A: Centralized dust collection system covering crushing, pelletizing, and screening zones; downwind placement of dust-generating equipment; regular maintenance of dust filters for biomass pellet plant dust control.
Conclusion
A well-designed biomass pellet factory layout is the cornerstone of your plant’s success—it directly impacts efficiency, safety, and profitability. At Huaxin Machinery, we combine decades of on-site experience with advanced 3D modeling to deliver customized, scalable, and cost-effective biomass pellet plant layouts that meet your unique needs. Whether you’re building a small farm biomass pellet plant or a large export-grade biomass pellet factory, our expert team will guide you through every step—from site selection to commissioning.
