Diesel Industrial Wood Chipper
Flexible, mobile and efficient solution for industrial wood chipping

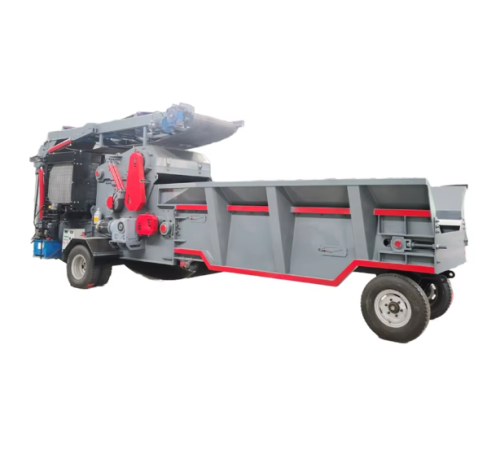

Diesel Industrial Wood Chipper Overview
The integrated diesel industrial wood chipper integrates feeding, crushing, screening and conveying functions, is equipped with a powerful diesel engine and can operate without an external power source. Whether it is a remote forest area, a construction site, or an agricultural production site, it can quickly convert logs, branches, sawdust, etc. into wood chips of uniform specifications, and is widely used in biomass fuel production, papermaking raw material processing, garden cover preparation and other scenarios.

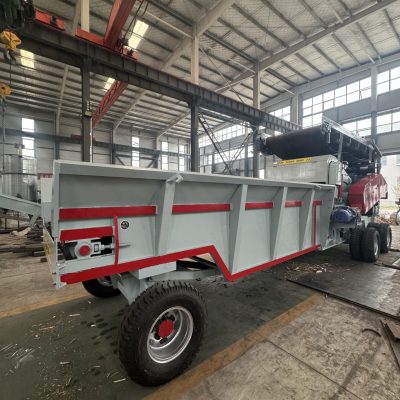

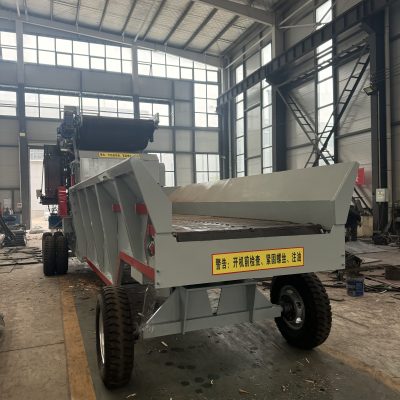

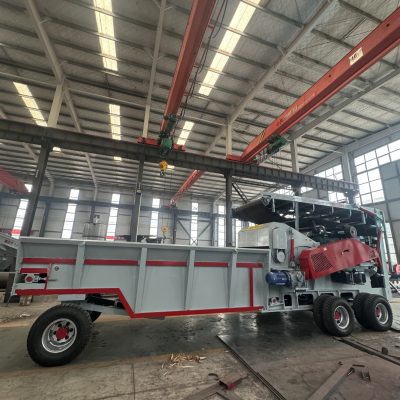

Diesel Industrial Wood Chipper for Sale
Product Details
Features and Advantages of Diesel Industrial Wood Chipper
Core dvantages
Diesel driven, flexible and maneuverable
Equipped with 35-120 horsepower high-performance diesel engines, it can meet the power requirements of different working conditions, especially suitable for remote areas without electricity supply. The equipment adopts a wheeled or crawler chassis design, which can easily transfer the work site and greatly improve the flexibility of use.
Integrated design, efficient and convenient
Integrates feeding, crushing, screening and discharging, simplifies the wood processing process, reduces the equipment footprint and labor operation costs. By replacing screens of different specifications, the size of wood chips can be accurately controlled between 5-50mm to meet diversified production needs.
Durable, durable and reliable
Key components are made of high-strength alloy materials, and the service life of blades and screens exceeds 800 hours. The optimized transmission system design ensures that the equipment remains stable and efficient under high-load operation, reducing maintenance frequency and use costs.
Safe and environmentally friendly
Fully enclosed feed hopper, emergency stop button and multiple safety protection devices to ensure the safety of operators. The diesel engine that meets the Euro V / National V emission standards, combined with an efficient dust removal system, effectively reduces exhaust gas and dust emissions and achieves green production.
Technical Parameters of Diesel Industrial Wood Chipper
Main Technical Parameters
| Modle | Diesel engine | Capacity (t/h) | Feed opening width (mm) | Output size(mm) |
|---|---|---|---|---|
| HXIC-600 | 4108 Turbo | 4-5 | 600 | 5-50 |
| HXIC-800 | 6105 Turbo | 5-8 | 800 | 5-50 |
| HXIC-1100 | 6100 Turbo | 8-10 | 1100 | 5-50 |
| HXIC-1300 | 6126 Turbo | 10-15 | 1300 | 5-50 |
| HXIC-1400 | 6126 Turbo | 15-20 | 1400 | 5-50 |
| HXIC-1600 | 6126 Turbo | 18-25 | 1600 | 5-50 |
Working Principle of Diesel Industrial Wood Chipper
Working Principle
- Feeding: Raw wood materials are loaded into the hopper, where an automatic feeder controls the speed to prevent blockages and ensure a steady flow into the cutting chamber.

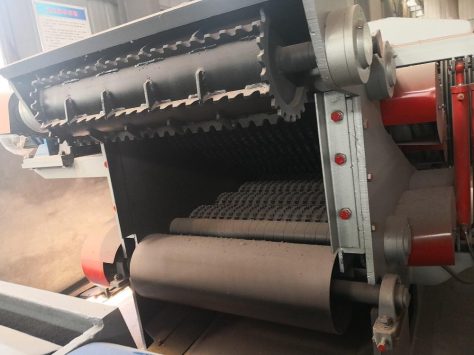

- Crushing: Driven by the diesel engine, high-speed rotating blades (1000 – 1800 r/min) shear the wood into small pieces, with a counter-knife enhancing the cutting efficiency.
- Screening: The crushed wood passes through a vibrating screen. Oversized pieces are redirected for re-crushing, while 合格 chips that meet the size requirement are discharged.
- Conveying: Finished chips are transported via a built-in conveyor belt to a storage area or directly loaded onto trucks for further processing.
Application Scenarios of Diesel Industrial Wood Chipper
Application Scenarios
Forestry and Logging
Efficiently processes felled trees and branches into transportable chips on-site, reducing the need for bulky log transportation and maximizing resource utilization.
Biomass Energy Production
Converts wood waste into uniform biomass chips for power plants, boilers, and biofuel facilities, contributing to renewable energy generation.
Landscaping and Agriculture
Shreds tree trimmings and garden waste into mulch, improving soil quality and reducing waste disposal costs. Ideal for large-scale landscaping projects and farms.
Construction and Demolition Sites
Quickly clean up construction formwork and wood debris from construction areas, converting waste into reusable industrial wood chips.
Successful Cases of Diesel Industrial Wood Chipper
Successful Cases

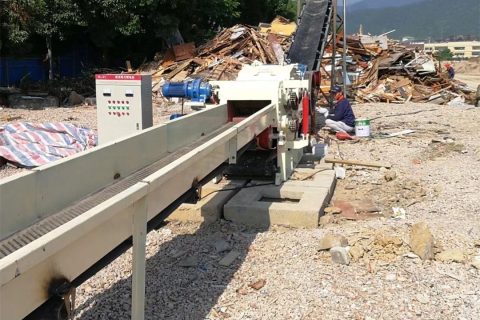

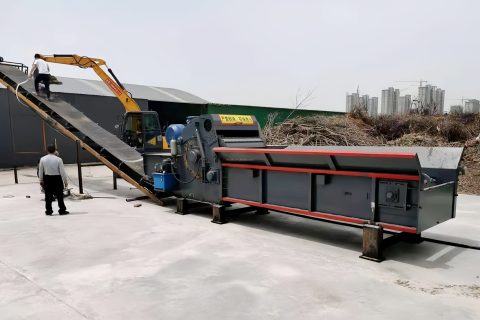

Canadian Forestry Company
Using the HXDIC-1000, the company processed 6 tons of logs per hour in remote forest areas, eliminating the need to transport raw logs to centralized processing plants. This reduced transportation costs by 35%.
Biomass Power Plant in Indonesia
The HXDIC-1300 chipper supplied 4 tons of biomass chips per hour, meeting 20% of the plant’s fuel demand. Its diesel power allowed for continuous operation during power outages.
Landscaping Project in Australia
The HXDIC-1400 efficiently converted tree trimmings into mulch on-site, saving $15,000 in waste disposal fees and providing eco-friendly mulch for garden beds.
Frequently Asked Questions.
Yes, the diesel engine and rugged construction enable operation in various climates, from cold winters to hot summers. However, regular maintenance is recommended in harsh environments.
With its wheeled or tracked base, it can be easily towed by a tractor or truck. For long-distance transport, we recommend securing the machine properly to ensure safety.
Fuel consumption varies by model and load, typically ranging from 8 – 20 liters per hour. For precise data, refer to the technical specifications of your chosen model.
No, the screen mesh can be quickly removed and replaced without specialized tools, allowing for easy adjustment of chip size to meet different production needs.
Yes, we offer optional upgrades such as larger hoppers, enhanced dust collection systems, and magnetic separators to remove metal contaminants, tailored to specific requirements.
