For DIY enthusiasts and small – scale entrepreneurs, making your own charcoal doesn’t require expensive commercial equipment. A homemade charcoal maker can turn wood scraps, coconut shells, or agricultural waste into high – quality charcoal—saving you money and giving you full control over the process. Not only will you cut costs on store – bought charcoal, but you’ll also gain the satisfaction of creating a functional tool that turns waste into a valuable product.
Materials and Tools Required
Building a basic DIY charcoal maker is simpler than you might think. Here’s what you’ll need:
Materials

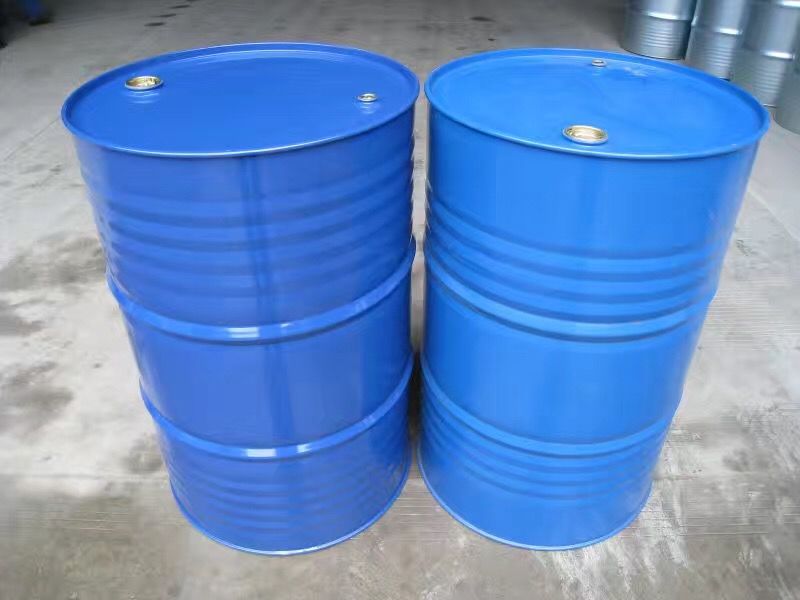

- 2 metal drums (55 – gallon/200 – liter size works best; ensure they’re clean and free of chemicals).
- Steel pipe (2 inches in diameter, 12 inches long) for ventilation.
- Heat – resistant insulation (ceramic wool or firebricks) to line the inner drum.
- Metal hinges and a latch to seal the drum lid tightly.
- Steel mesh or grating to separate charcoal from ash.
- High – temperature paint to protect the outer drum from rust.
Tools
- Drill with metal bits (to make ventilation holes).
- Angle grinder or hacksaw (to cut metal pipes and modify drums).
- Welding machine (optional but helpful for securing parts; bolts work as a substitute).
- Screwdrivers, wrenches, and a tape measure.
- Fire extinguisher (critical for safety during construction and use).
Step - by - Step Construction Guide
Follow these steps to build your charcoal maker, with safety as a top priority:
Step 1: Prepare the Inner Drum
- Drill 8–10 small holes (1/4 inch) in the bottom of one drum for airflow.
- Line the inside with insulation (ceramic wool) to trap heat, leaving 2 inches of space at the top.
- Attach the steel mesh to the bottom of the drum to hold biomass and separate it from ash.
Safety Tip: Wear gloves and eye protection when drilling metal to avoid injuries from flying debris.
Step 2: Modify the Outer Drum
- Cut a 10 – inch diameter hole in the lid of the second drum to act as a chimney.
- Weld or bolt the steel pipe to this hole to create a ventilation stack.
- Drill 4–6 small holes around the base of the outer drum for air intake.
Safety Tip: If welding, work in a well – ventilated area and keep a fire extinguisher nearby.
Step 3: Assemble the Maker
- Place the inner drum (with insulation) inside the outer drum.
- Attach hinges to connect the outer drum’s lid to its body, then add a latch to seal it tightly.
- Paint the outer drum with high – temperature paint and let it dry completely before use.
Safety Tip: Ensure all parts are securely fastened to prevent the drum from opening during use.
Operating and Maintaining the DIY Charcoal Maker
Using your homemade charcoal maker is straightforward, but proper operation ensures safety and good results:
Operation
- Fill the inner drum with dry biomass (cut wood into 4–6 inch pieces for even carbonization).
- Seal the lid tightly and place the maker on a non – flammable surface (concrete or bricks).
- Light small pieces of kindling under the outer drum to start the fire. Let it burn for 1–2 hours until smoke turns from white to thin blue (a sign that moisture has evaporated).
- Close the air intake holes and let the drum cool for 8–12 hours before opening to avoid re – igniting the charcoal.
Maintenance
- Clean ash from the bottom of the outer drum after each use to prevent blockages.
- Check for rust regularly; repaint with high – temperature paint if needed.
- Inspect hinges and latches monthly to ensure they stay tight.
Limitations and Improvements
A DIY charcoal maker has its limits, but you can upgrade it over time:
Limitations
- Small capacity (produces 5–10kg of charcoal per batch, suitable for personal use or small businesses).
- Less temperature control than commercial machines, which may lead to occasional uneven charcoal.
- Requires manual labor (no automated feeding or cooling).
Improvements
- Add a thermometer to monitor internal temperature and adjust airflow as needed.
- Install a larger ventilation pipe to improve smoke release and reduce cooking time.
- Build a separate cooling chamber to speed up the cooling process safely.
Conclusion
Building a DIY charcoal maker is a cost – effective way to produce charcoal at home. With basic materials and tools, you can create a functional machine that turns waste into a useful product. While it may not match the capacity of commercial equipment, it’s perfect for hobbyists, small farms, or anyone looking to reduce waste and save money.
