Double Shaft industrial shredder machine
Efficient Waste Shredding Solution
Double Shaft Shredder Overview
Huaxin Double Shaft Shredder is a high-performance shredding equipment designed to process various solid wastes into uniform fragments. It specializes in shredding wood logs, plastic, rubber, paper, and agricultural residues, converting bulky materials into 30–100mm pieces for further processing or recycling. With its dual-shaft design, it delivers stable operation and strong crushing capacity, widely used in waste management, recycling plants, and industrial material pretreatment.

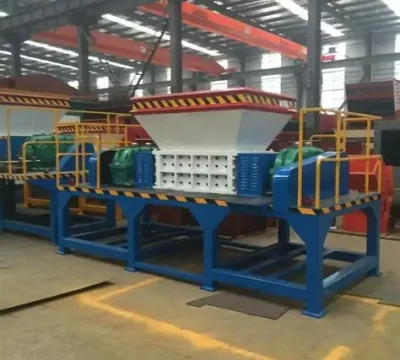

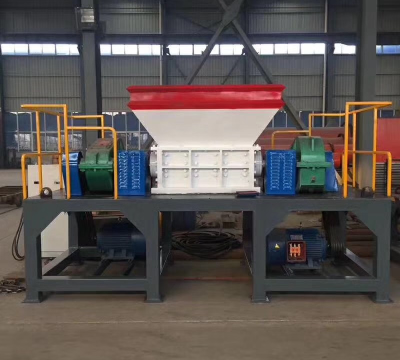

Double Shaft Shredder for Sale
Product Details
Features and Advantages of Double Shaft Shredder machine
Features and Advantages
Powerful Shredding Capacity
Equipped with two intermeshing shafts with high-strength blades, it generates strong shearing and tearing force. It can handle materials up to 500mm in diameter, including hard wood logs and thick plastic sheets, with minimal jamming.
Adjustable Output Size
By replacing blade sets and adjusting shaft speed, it produces fragments of 30–100mm, meeting different downstream needs (e.g., 30–50mm for briquetting, 50–100mm for landfill reduction).
Energy Efficiency
The dual-shaft synchronous rotation design reduces energy loss. Compared to single-shaft shredders, it saves 20% energy while increasing processing efficiency by 30%.
Durable Structure
Blades are made of wear-resistant alloy steel, with a service life of over 8,000 hours. The main frame is reinforced with thick steel plates to withstand high torque, suitable for continuous 24-hour operation.
Technical Parameters of Double Shaft industrial shredder machine
Main Technical Parameters
| Modle | Main Motor(kw) | Speed (r/min) | Capacity (kg/h) | Feed size(mm) | Output Size (mm) |
|---|---|---|---|---|---|
| HXDS-600 | 22 | 30-50 | 300–800 | ≤300 | 30–80 |
| HXDS-1000 | 45 | 20-40 | 800–2000 | ≤500 | 40–100 |
| HXDS-1500 | 75 | 15-30 | 2000-5000 | ≤800 | 50–120 |
Working Principle of Double Shaft Shredder
Working Principle
Materials are fed into the shredding chamber through the hopper. The two shafts rotate in opposite directions, driving the intermeshing blades to grab, shear, and tear materials into small pieces. The shredded fragments fall through the gap between the blades and are discharged via the conveyor. The whole process is continuous, with the speed and blade gap adjustable to control output size.
Application Scenarios of Double Shaft wood shredder machine
Application Scenarios
Wood Processing
Shreds logs, branches, and wood scraps into uniform pieces for subsequent briquetting (with piston briquetting machines) or biomass pellet production.
Coconut shell palm shell processing
Crush coconut shells, palm shells, etc. to make them easier to transport and can be used as biomass fuel or organic fertilizer raw materials.
Waste recycling
Process plastic bottles, rubber tires and waste paper into fragments for easy recycling and to reduce the pressure on landfills.
Industrial material pretreatment
Pre-crush large pieces of industrial waste (such as wooden pallets, packaging boxes) to reduce volume and reduce storage and transportation costs.
Successful Cases of double shaft industrial shredder
Successful Cases
A recycling plant in Finland
Uses our HXDS-1000 twin-shaft shredder to process 15 tons of irregular packaging wood waste per day. The shredded material is sent to the briquetting production line, with a waste utilization rate of 95%.
A wood processing plant in China
Uses the wood shredder machine to shred 8 tons of building formwork into 40-60 mm fragments. These fragments can be used as raw materials for furniture board production, reducing raw material costs by 25%.
An agricultural company in Indonesia
Uses the HXDS-1500 to shred 10 tons of straw coconut shells and palm shells per day. The shredded material is converted into organic fertilizer, which increases crop yields by 15% and reduces environmental pollution.
Frequently Asked Questions.
It handles wood (logs, scraps), plastic, rubber, paper, straw, and agricultural residues. Avoid materials with hard metal impurities to protect blades.
Replace blade sets with different tooth pitches or adjust the shaft rotation speed via the control panel to achieve 30–120mm fragments.
Under normal operation, blades last 8,000–10,000 hours. For abrasive materials (e.g., hardwood), we recommend checking wear every 5,000 hours.
The modular design allows easy access to blades and shafts. Regular lubrication of bearings and cleaning of the shredding chamber are the main maintenance tasks, with low upkeep costs.
Yes. We offer customized blade materials (for specific materials), feeding systems (e.g., conveyor belts), and safety features (e.g., metal detectors) based on your needs.
Contact Us Today For A Free Quote!
Ready to optimize your waste shredding process? Huaxin Machinery provides high-quality Double Shaft Shredder with reliable performance. Contact us now for:
✅ Free quotes and technical consultations
✅ On-site installation and operation training
✅ Customized solutions for your specific materials
Contact Us Today to optimize your waste recycling and energy production efficiency.
