Choosing between a flat die and ring die wood pelletizer is critical for your production goals. Flat die machines excel in small-scale, flexible operations, while ring die models dominate large-scale, high-efficiency production. Understanding their differences—from structure to cost—will help you pick the machine that matches your output needs, materials, and budget.
Introduction: Matching Machine to Mission
Wood pelletizers turn sawdust and wood waste into pellets, but their design dictates what they do best. Flat die machines are like “all-purpose tools”—simple, affordable, and easy to use for small batches. Ring die machines are “industrial workhorses”—built for nonstop production and consistent pellet quality. The right choice depends on whether you need to produce 500kg of pellets daily for local sales or 5+ tons daily for industrial clients.
Structure Comparison: How They’re Built
Flat Die Wood Pelletizer
- Core design: A stationary flat steel die (a circular plate with 6–10mm holes) and 2–4 rotating rollers above it. Rollers press material down into the die’s holes to form pellets.
- Size: Compact (1–2m² footprint), lightweight, and easy to move—ideal for small workshops or farms.
- Key feature: Simple assembly with fewer moving parts, making repairs and part replacements straightforward.

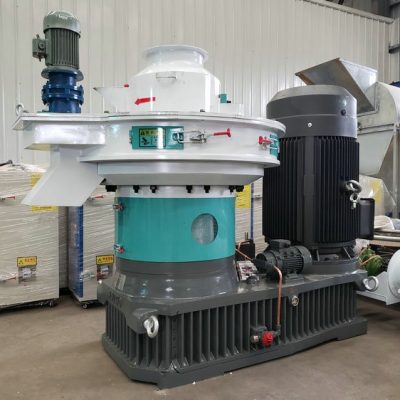

Ring Die Wood Pelletizer
- Core design: A rotating cylindrical die (ring-shaped, with holes on its inner wall) and 2–3 stationary rollers inside. Rollers press material against the rotating die, forcing it through holes to form pellets.
- Size: Larger (3–5m² footprint) and heavier—requires fixed installation in a dedicated facility.
- Key feature: Precision engineering with reinforced components (e.g., high-chrome steel die) to handle continuous use.
Output Capacity & Efficiency Differences
| Metric | Flat Die Machine | Ring Die Machine |
|---|---|---|
| Daily output | 500kg–2 tons | 2–20+ tons |
| Energy efficiency | 8–10 kWh per ton of pellets | 6–8 kWh per ton (10–15% more efficient) |
| Pellet consistency | Moderate (some size variation) | High (uniform density and size) |
Why It Matters
- Small-scale operations: A flat die machine produces enough pellets for local heating or small farms, with lower upfront costs.
- Large-scale operations: A ring die machine’s higher output and efficiency cut per-ton production costs, critical for competing in industrial markets. For example, a 5-ton/day ring die machine uses 100kWh less electricity daily than a flat die model, saving $15–$20 daily.
Suitability by Material Type and Application
Flat Die Wood Pelletizer: Best for Simple Materials
Ideal materials: Softwoods (pine, spruce) and fine sawdust (0.5–3mm). They struggle with hard, abrasive materials (e.g., oak bark) due to faster die wear.
Top applications:
- Small farms producing pellets for on-site heating.
- Local suppliers selling to homeowners or small businesses.
Ring Die Wood Pelletizer: Built for Tough Materials
Ideal materials: Hardwoods (oak, maple), wood chips (after grinding), and even abrasive materials like bark. Their wear-resistant dies (high-chrome steel) handle abrasion better.
Top applications:
- Industrial pellet producers supplying power plants or large boilers.
- Sawmills recycling wood waste into high-value pellets for export..
Cost and Maintenance Differences
Upfront Costs
- Flat die: $5,000–$15,000 (affordable for startups).
- Ring die: $15,000–$80,000 (higher initial investment, but lower per-ton costs at scale).
Maintenance Costs

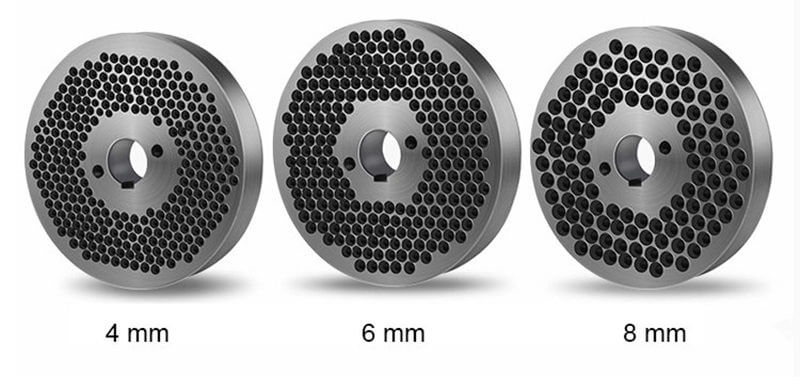

- Flat die: Dies last 500–800 hours (replacements cost $300–$800). Rollers need replacement every 1,000 hours ($200–$500).
- Ring die: Dies last 1,200–2,000 hours (replacements cost $1,000–$3,000, but longer lifespan offsets cost). Rollers last 2,000–3,000 hours ($500–$1,000).
Long-Term Value
A flat die machine costs less upfront but has higher per-ton maintenance costs. A ring die machine requires more investment but saves money over 5+ years—especially for operations producing 2+ tons daily.
Final Recommendation: Home vs. Industrial Use
Choose a flat die machine if:
- You need <2 tons of pellets daily.
- You work with softwoods or fine sawdust.
- Budget is a priority, and you prefer simple maintenance.
Choose a ring die machine if:
- You need 2+ tons of pellets daily.
- You work with hardwoods, wood chips, or abrasive materials.
- You want consistent, high-quality pellets (e.g., for industrial or export markets).
