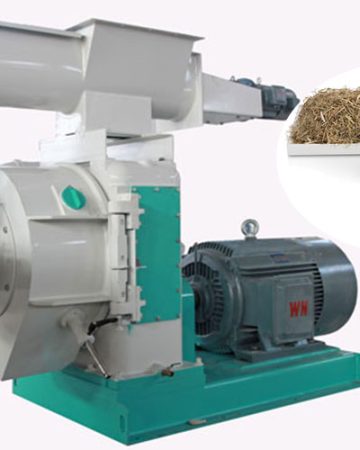

Horizontal Ring Die Pellet Mill

For efficient and stable granule pressing

Horizontal Ring Die Pellet Mill

Horizontal Ring Die Pellet Mill Overview

Horizontal ring die pellet mill is a kind of high-efficiency pellet making equipment, through the unique design of horizontal ring die, this equipment can achieve high-quality and high-yield pellet production, which is widely used in the large-scale production of animal feed, environmentally friendly biomass pellet fuels, organic fertilizers and other fields.

Horizontal Ring Die Pellet Mill for Sale

Product Details

Features and Advantages of Horizontal Ring Die Pellet Mill

Features and Advantages

High productivity

Horizontal ring mould design effectively improves the production efficiency, capable of handling a large amount of raw materials to meet the needs of large-scale production.

Strong applicability

Capable of handling a wide range of raw materials, including grains, wood chips, straw, grass, etc., with excellent adaptability.

Strong stability

The machine has a sturdy structure, stable operation, can withstand long-term high-intensity operation, and is suitable for 24-hour continuous operation.

Easy maintenance

The horizontal ring die pellet mill is designed for easy cleaning and maintenance, reducing downtime and maintenance costs.

Technical Parameters of Horizontal Ring Die Pellet Mill

Main Technical Parameters

Modle Main Motor(kw) Capacity (t/h) Raw material humidity (%) Pellet size (mm)
HXRP350 37 0.5-0.8 10-18 2-8
HXRP420 55 0.8-1.2 10-18 3-10
HXRP560 90 1.2-2 10-18 4-12
HXRP800 160 2-3.5 10-18 4-12
HXRP1000 220 3.5-5 10-18 5-12
Horizontal Ring Die Pellet Mill

Working Principle of Horizontal Ring Die Pellet Mill

Working Principle

When Horizontal Ring Die Wood Pellet Mill is in operation, the material is firstly sent into the pelletizing chamber from the silo by the feeding screw. The material is driven by the high-speed rotating ring die, the material is thrown to the inner wall of the ring die under the effect of centrifugal force, and the strong extrusion pressure is generated between the fixed pressure rollers, and it is squeezed into the hole of the ring die, and extruded out of the hole of the ring die to become cylindrical particles, and then it is cut by the cutter into the appropriate length, and then it is discharged from the discharge port.

OIP (16)

Application Scenarios of Horizontal Ring Die Pellet Mill

Application Scenarios

Feed Industry

It is used to produce various types of animal feeds to meet the nutritional needs of animals such as pigs, chickens, cows and sheep.

Biomass Energy

Agricultural waste, wood chips, straw, etc. are pressed into biomass fuel pellets, which are widely used to replace traditional energy sources.

Organic Fertiliser Production

Suitable for the granular production of organic fertiliser, enhancing the application effect of fertiliser and facilitating storage and transportation.

Fertiliser pellets

Used to manufacture fertiliser pellets to improve fertiliser utilisation and facilitate transport and application.

Successful Cases of Horizontal Ring Die Pellet Mill

Successful Cases

A large-scale farm feed production in Japan

A large-scale farm feed production in Japan

Horizontal ring die pellet mill was imported from our company. By optimising the extrusion process and automated control system, the production efficiency was increased by more than 30%.

R (2)2

An organic fertiliser production plant in India

 A horizontal ring die pellet mill was introduced to take advantage of its strong adaptability, resulting in cost savings of 15% and a significant increase in production efficiency.

A biomass pellet plant in South Africa

A biomass pellet plant in South Africa

After installing our Horizontal Ring Die Pellet Mill, which is able to efficiently process a wide range of biomass feedstocks, the company’s production capacity increased by 50%.

Horizontal Ring Die Pellet Mill

Frequently Asked Questions.

The scope of application is very wide, such as wood chips, straw, rice husk and other agricultural and forestry waste can be made into biomass fuel particles; soybean meal, corn, bran and other feed particles.

The pellets are well formed, high density and smooth surface. Raw materials are combined tightly under high pressure, biomass fuel pellets have good combustion performance and high thermal efficiency; feed pellets are resistant to storage and have good palatability.

Yes: Under normal maintenance, the life of mould is about 800 – 1500 tonnes. Material, processing technology affects the life, Huaxin machinery pellet machine adopts high quality alloy steel, precision CNC processing more durable.

The rollers often rub against the materials and moulds, and need to be replaced when granulating about 300 – 600 tonnes of hard materials, and up to 800 tonnes of soft materials.

Yes, it is possible, just change the moulds with different hole diameters (2 – 10 mm) and fine-tune the parameters. If you need specific diameters and lengths, Huaxin Machinery can produce them according to your needs.
