Sawdust briquettes have become a rising star in the field of sustainable development in the energy and industrial sectors. They are not only environmentally friendly, but also can replace fossil fuels and reduce waste generated by wood processing. As the demand for renewable energy grows, producing high-quality, dense, durable and efficient sawdust briquettes becomes the key to maximizing their value. This guide will guide you step by step from raw material selection to quality inspection to create top-quality sawdust briquettes.

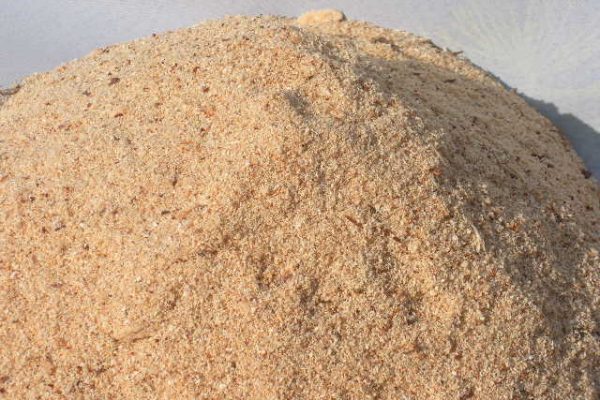

Raw Material Selection
The foundation of great sawdust briquettes lies in choosing the right materials. Here’s what to focus on:
- Wood Type: Hardwood sawdust (e.g., oak, maple, beech) is preferred over softwood (pine, fir) due to its higher calorific value (4,500–5,000 kcal/kg vs. 3,500–4,000 kcal/kg). Hardwood also binds better during compression, resulting in stronger briquettes.
- Particle Size: Opt for sawdust with a particle size of 0.5–3 mm. Too fine, and it may clump; too coarse, and it won’t compact evenly. A sieve with 3 mm mesh helps achieve this consistency.
- Moisture Content: Aim for 8–12% moisture. Overly wet sawdust (above 15%) causes briquettes to crack during drying, while overly dry material (below 5%) won’t bind properly. Use a moisture meter to test batches.
- Additives: For enhanced binding, mix in 2–5% starch (e.g., corn or potato starch) dissolved in water. This natural binder improves briquette strength without harming combustion efficiency. Avoid chemical binders, which can release toxins when burned.
Briquetting Process
Forming sawdust into briquettes requires precise steps to ensure its density and durability:
- Pretreatment:
- Cleaning: Screen the sawdust to remove debris (stones, metal fragments) that could damage the equipment or weaken the briquettes.
- Drying: If moisture exceeds 12%, use a rotary dryer or direct sunlight to dry the sawdust until it reaches the target range. Spread the sawdust thinly for even drying.
2. Mixing (optional):
- Mix the sawdust with additives (if used) in a paddle mixer. For starch binders, mix dissolved starch with the sawdust until evenly coated to ensure uniform bonding.
3. Forming:
Use a briquetting machine to press the mixture into dense brittle masses. Two common types:
- Adjust the die size (50-100 mm diameter) to control the briquette size, and monitor the pressure/temperature to avoid over-compression (resulting in brittleness) or under-compression (loose and brittle brittle brittle masses).
- Hydraulic press: Apply high pressure (100-300 MPa) to form the briquettes. Ideal for small to medium scale production; produces dense, uniform briquettes at very low heat.
- Screw Extruder: Uses a rotating screw to push sawdust into a die, generating frictional heat (120-180°C) that softens lignin (the natural binder in wood). This heat-assisted process produces extra-strong briquettes, ideal for large-scale production.
4. Cooling and Curing:
Freshly pressed briquettes are warm and soft. Allow to harden by cooling to room temperature (2-4 hours). For screw extruded briquettes, cure in a dry, well-ventilated area for 24-48 hours to stabilize moisture content.
Quality Control
High-quality sawdust briquettes meet strict standards. Test these key metrics:
1. Density: Target 1.1–1.3 g/cm³. Measure by weighing a briquette and dividing by its volume (length × diameter × π). Low density (below 1.0 g/cm³) indicates poor compression and low burn efficiency.
2. Compressive Strength: Drop a briquette from 1 meter onto concrete—less than 10% should break. Weak briquettes may need more binder or higher pressure.
3. Combustion Performance:
- Heat Output: Use a calorimeter to verify 4,000+ kcal/kg (hardwood) or 3,500+ kcal/kg (softwood).
- Burn Time: A 50mm briquette should burn 2–3 hours steadily, with minimal smoke.
- Ash Content: Should be below 5%—high ash (above 8%) indicates impurities.
If issues arise:
- Cracks: Reduce moisture or increase pressure.
- Low heat: Switch to hardwood or check for contaminants.
- Weak binding: Increase starch ratio or adjust machine pressure.
Conclusion
Making high-quality sawdust briquettes requires attention to raw materials, precise processing, and rigorous testing. By selecting the right sawdust, using proper equipment, and monitoring quality, you can produce briquettes that excel in efficiency, durability, and eco-friendliness. Whether for home heating or industrial use, these steps ensure your briquettes stand out in a competitive market.
