Introduction
In the world of biomass pellet production, optimizing machine performance is key to achieving high yields and consistent quality. One critical, yet often overlooked factor, is the die speed of the wood pellet mill. Whether you’re a small-scale producer or running a large industrial operation, understanding how to optimize pellet mill die speed can significantly impact production efficiency, pellet durability, and energy consumption.
In this article, we’ll explore the science behind die speed, its relationship to other key parameters, and actionable strategies to fine-tune it for the best pelletizing results.

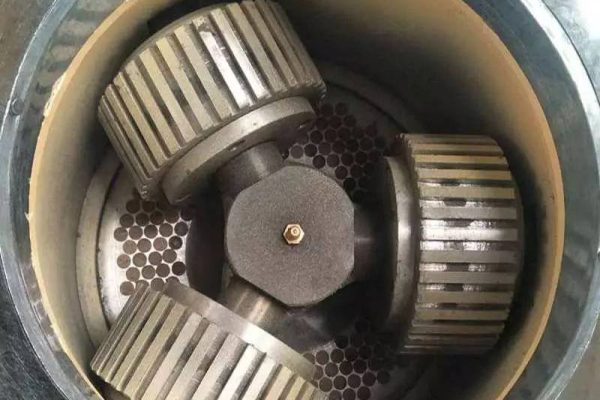

1. What Is Pellet Die Speed?
The die speed refers to the rotation speed of the ring die or flat die in a pellet mill. Measured in RPM (rotations per minute), this speed directly affects the:
Pressure applied to biomass material
Friction and heat generated in the die
Residence time of particles during compression
Finding the best die speed for wood pellet production is a balancing act. Too fast, and pellets may become loose, cracked, or even burned. Too slow, and output drops, possibly leading to die blockage.
2. Key Factors That Influence Optimal Die Speed
a. Raw Material Type and Composition
Different biomass materials react differently under pressure. Softwood, for example, typically contains more natural binders like lignin and may tolerate higher die speeds. Agricultural residues or hardwoods often require slower speeds for better compaction.
b. Moisture Content of the Feedstock
Moisture content plays a major role in determining how fast or slow the die should spin. Materials with high moisture (above 15%) may require slower speeds to allow enough drying and compression time. Conversely, overly dry materials may burn or produce brittle pellets at high RPMs.
c. Die Design and Compression Ratio
Dies with high compression ratios take longer for the material to be compressed and discharged. Using low compression ratio dies and high rotation speeds may result in fluffy, low-density pellets.
Huaxin Machinery Professional Tip: Always match the die compression ratio with the speed setting for the best pellet formation effect.
3. How to Adjust and Control Die Speed
a. Use Variable Frequency Drives (VFDs)
Modern pellet mills often come equipped with VFDs, which allow you to adjust the speed of the die motor in real time. This is the most effective way to experiment with different speeds and find your optimal range.
b. Test Incrementally
Start with manufacturer-recommended RPM values and test in small increments (e.g., +10 or -10 RPM). Measure:
Pellet output (kg/hour)
Pellet quality (density, cracks, durability)
Energy consumption (kWh per ton)
Track these over several test cycles to discover the speed that offers maximum pellet yield with minimum energy input.
c. Monitor Die Temperature
As speed increases, so does friction and heat. Use infrared sensors or thermal cameras to monitor die surface temperature. Keep it within 80–110°C to prevent overheating or material burn.
4. Signs That Your Die Speed Is Not Optimized
If you’re experiencing any of the following, your die speed may be too fast or too slow:
Pellets are too soft or crumble easily
Burn marks or dark-colored pellets
Inconsistent pellet length or density
Frequent die blockages or motor overloads
Excessive fines or dust output
These are all indicators that it’s time to reassess your pellet mill’s die speed settings.
5. Real-World Speed Recommendations
| Material Type | Ideal Die Speed (RPM) | Notes |
|---|---|---|
| Softwood | 250–280 | Higher lignin content, good flow |
| Hardwood | 180–230 | Denser, requires slower compression |
| Agricultural waste | 160–200 | Often lower binding ability |
| Mixed biomass | 200–250 | Test and balance based on blend |
Disclaimer: Always refer to your equipment manufacturer’s guidelines before making adjustments.
6. Other Tips to Improve Pellet Output Alongside Die Speed
- Keep rollers and die well-lubricated to reduce resistance
- Maintain sharp and clean knives for uniform pellet length
- Use pre-conditioned biomass with steam to improve flow
- Clean the die regularly to prevent clogging and ensure even pressure
Conclusion
Optimizing die speed is a powerful, underutilized way to increase wood pellet output and ensure product consistency. By considering feedstock properties, compression ratios, and testing through VFDs, you can strike the right balance between speed and quality. Start slow, monitor your system, and iterate—because even a small tweak in RPM can lead to big gains in efficiency.
