A wood pelletizing machine’s performance depends on the quality and coordination of its core components. From shaping pellets to ensuring consistent output, each part plays a critical role in efficiency, pellet quality, and long-term reliability. Understanding these components helps you maintain equipment, troubleshoot issues, and even choose the right machine for your needs. This guide breaks down the key parts and their importance.
Die: The Heart of Pellet Shaping
The die is where wood material transforms into pellets. Its design and quality directly impact pellet size, density, and production efficiency.
Ring Die vs. Flat Die
Flat Die: A stationary, circular plate with evenly spaced holes. Rollers move across its surface, pressing material through the holes.
- Best for: Small-scale production (80–1000 kg/h) and softwoods. Its simple design makes maintenance easy, but it produces lower-density pellets (more prone to breakage).
- Durability: Suitable for low-volume use; frequent contact between rollers and flat surface may wear holes faster with hardwoods.

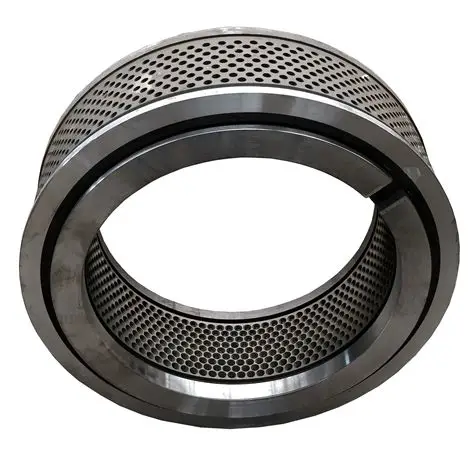

Ring Die: A cylindrical, rotating drum with holes on its inner surface. Rollers press material against the drum, forcing it through the holes.
- Best for: Large-scale production (0.8–2 t/h) and hardwoods. It produces denser, more uniform pellets due to consistent compression.
- Durability: Rotating design distributes wear evenly, lasting longer than flat dies—ideal for continuous operation.
Material and Design
Dies are typically made from alloy steel or high-chrome steel, chosen for their ability to withstand high pressure (up to 100 MPa) and abrasive wood fibers. High-chrome steel dies last 800–1,200 hours (50% longer than standard alloy steel) when processing hardwoods.
Hole size and shape also matter:
- Hole diameter: Determines pellet size (common 6–8 mm for biomass pellets). Smaller holes (4 mm) work for animal feed, while larger ones (10 mm) suit industrial fuel.
- Hole shape: Tapered holes (wider at the input end) reduce friction, producing smoother pellets and extending die life.
Rollers: Applying Pressure for Pellet Formation
Rollers work with the die to compress wood material, turning loose wood into dense pellets. Their alignment and condition are critical for consistent pressure.
Function in the Pelletizing Process
Rollers apply force to wood material, pushing it through the die’s holes. The pressure activates lignin (a natural binder in wood), helping pellets hold their shape. For ring dies, rollers stay stationary while the die rotates; for flat dies, rollers move over the stationary die.
- Pressure adjustment: Roller pressure can be tuned for different materials—softer pressure for softwoods (pine) and higher pressure for hardwoods (oak) to ensure proper density.
Roller Wear and Replacement
Rollers wear over time due to friction with wood and die contact. Signs of wear include:
- Uneven pellet density (some pellets too loose, others too dense).
- Increased energy use (rollers work harder to apply pressure).
To extend roller life:
- Keep rollers clean to avoid buildup that causes uneven wear.
- Align rollers properly (misalignment accelerates wear and damages the die).
- Replace rollers when grooves or flat spots appear (typically every 800–1,000 hours of use).
Feeding System: Ensuring Steady Material Flow
A reliable feeding system delivers wood material (sawdust, shavings) to the die and rollers at a consistent rate. Without uniform feeding, pellets become uneven, and the machine may jam.
Types of Feeding Mechanisms
1. Gravity-fed systems: Common in vertical ring die machines. Material falls into the pelletizing chamber via gravity, reducing friction and energy use.
- Best for: Fine materials like sawdust; less effective for large wood chips.
2. Screw feeders: Augers push material into the chamber (used in horizontal ring die and some flat die machines).
- Best for: Coarse materials (shavings, small chips) and high-volume production, but may cause more friction.
Importance of Uniform Feeding
Inconsistent feeding leads to “starvation” (not enough material) or overfeeding:
- Starvation: Rollers press against the die without material, causing excess wear.
- Overfeeding: Material clogs the die, stopping production.
A well-designed feeder adjusts flow based on machine speed—critical for maintaining pellet quality and reducing downtime.
Drive System: Powering the Machine
The drive system converts energy into motion for the die and rollers. Its efficiency impacts energy costs and production capacity.
Electric vs. Diesel Drives
- Electric drives: Most common in industrial settings. They’re energy-efficient, quiet, and easy to maintain. Ideal for factories with stable power supply, offering consistent speed (key for uniform pellets).
- Diesel drives: Used in remote areas (no electricity) or mobile setups. They’re portable but less efficient (higher fuel costs) and louder.
Transmission and Power Transfer
Motors connect to the die and rollers via gears or belts, transferring power smoothly. A well-tuned transmission ensures:
- Steady die rotation (prevents uneven pellet density).
- Balanced roller pressure (reduces wear on dies and rollers).
- Energy efficiency (minimizes power loss during transfer).
Cooling and Drying Components: Refining Pellet Quality
Freshly made pellets are hot (60–80°C) and slightly moist. Cooling and drying components ensure they harden properly for storage and transport.
Cooling System for Pellets
Air-cooled systems (fans) or water-cooled jackets reduce pellet temperature to 25–30°C. This stops moisture from condensing inside pellets, preventing mold and maintaining hardness. For large-scale production, vibrating cooling screens also separate fine particles from finished pellets.
Drying Components for Raw Materials
Wood material needs 10–15% moisture for optimal pelletizing (too wet causes soft pellets; too dry leads to dust and breakage). Drying components like rotary dryers or belt dryers adjust moisture levels:
- Rotary dryers: Tumble wood material with hot air—effective for large batches.
- Belt dryers: Move material on a conveyor through heated chambers—ideal for fine sawdust.
Proper drying reduces die wear and ensures pellets hold their shape.
Conclusion: The Whole Is Greater Than Its Parts
Every component of a wood pelletizing machine—die, rollers, feeder, drive system, and cooling parts—plays a role in producing high-quality pellets efficiently. A high-quality die ensures consistent shape, well-maintained rollers apply even pressure, a reliable feeder prevents jams, and an efficient drive system reduces energy use. By prioritizing component quality and regular maintenance, you can maximize production uptime, reduce costs, and produce pellets that meet market standards.
