Mobile Diesel Tree Chipper
Efficient and flexible branch crushing solutions
Mobile Diesel Tree Chipper Overview
A Mobile Diesel Tree Chipper is a portable, diesel-powered machine for on-site processing of tree branches and small logs. With built-in mobility (wheels/tracks), it works in remote areas sans electricity. It efficiently chips 10–25cm diameter materials into mulch or biomass, aiding arborists, forestry, and land-clearing tasks, turning waste into usable resources.
Tree Chipper for Sale
Product Details
Features and Advantages of Mobile Branch Crusher
Features and Advantages
Flexible mobility
Installed in the mobile chassis, wheeled or tracked on demand, narrow space, complex terrain, unrestricted operation site.
Efficient Crushing
Powerful knife rollers and precise crushing structure, fast feeding, large capacity, instantly turn tree branches into chips.
Multi-compatibility
It can handle all kinds of dry and wet wood, and the crushing granularity can be adjusted at multiple levels, from coarse wood chips to fine powder, making it a multi-purpose machine.
Higher production efficiency
Closed crushing, reduce dust, control noise, optimise power system, low energy consumption, fuel saving, green technology, material rebirth, protect the environment.
Tree Chipper Technical Specifications
| Model | Diesel engine power（hp） | Number of cutters（slabs） | Output particle size (mm) | Capacity (kg/h) | Fuel consumption（l/h) | Feed diameter (mm) |
|---|---|---|---|---|---|---|
| HXYL-600 | 28 | 3 | 20-100 | 300-1000 | 1 | 100 |
| HXYL-700 | 40 | 3 | 20-100 | 500-1500 | 2 | 150 |
| HXYL-1000 | 80-100 | 4 | 20-100 | 1000-3000 | 3-5 | 200 |
| HXYL-1100 | 100-160 | 4 | 20-100 | 2000-6000 | 4-10 | 250 |
| HXYL-1200 | 160-220 | 4 | 20-100 | 3000-8000 | 6-15 | 300 |

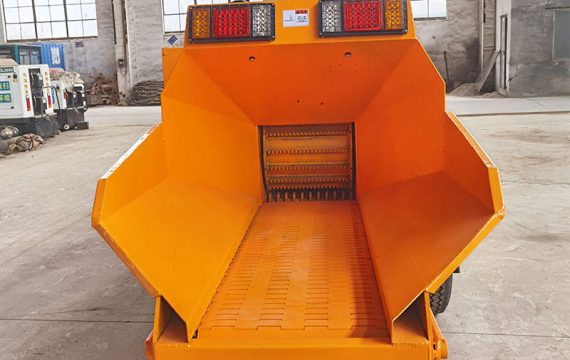

Working Principle of Mobile Log Shredder
Working Principle
When the Mobile Branch Crusher is working, the branches are fed into the crushing chamber from the feeding hopper. The power source of the equipment drives the crushing blades and hammers to rotate at high speed, cutting, tearing, crushing and beating the branches. Branches are initially crushed under the action of movable and fixed knives, and then further crushed by dumping knives and other fine crushing. Finally, the crushed wood chips are discharged through the discharge port or collected under the action of wind.
Application Scenarios of Mobile Commercial Tree Chipper
Application Scenarios
Garden maintenance
A large number of branches pruned from city parks and community greenery are shredded on site and can be composted as a feedstock for organic fertilisers.
Forestry harvesting
Forestry logging residues, mobile branch crusher into the field, crushed while logging, clean up the site at the same time, the output of biomass pellet fuel raw materials.
Wood processing plant
Wood processing can be recycled waste branches instead of expensive wood, crushed and processed into boards, as well as fillers, reducing costs.
Biomass Energy
In biomass power plants, fuel plants, specialised in processing tree waste, output of high-quality fuel, alternative to traditional energy, waste renewable energy.
Buying Guide of Mobile Branch Crusher
Buying Guide
Define the purpose
If it is for garden maintenance and small farm use, you can choose a small model; if it is for forestry or industrial use, you need a high-power equipment.
Choosing the power method
There are three types of power: diesel, electric and petrol. Diesel is suitable for field operation, electric motor is suitable for fixed place, and petrol is more flexible. or more.
Check out the safety design
Ensure that the equipment is equipped with safety devices such as guards, overload protection and emergency stop buttons to reduce operational risks.
Equipment quality
Confirm that the equipment has wheels or towing capabilities to allow for easy movement between venues. Also note if the overall size of the equipment is easy to store.
Frequently Asked Questions.
It is mainly used to process green waste such as tree branches, leaves, shrubs, etc. It is also suitable for orchard pruning branches and horticultural waste.
Depending on the model, branches with a diameter of 5-20 cm can be processed. Please choose the equipment with the right specifications according to your needs.
The crushed chips can be used as garden mulch, composting material, wood chip fuel, or for soil improvement, fully realising the reuse of resources.
The equipment makes some noise when running, diesel and petrol are relatively powerful but meet industry standards and are recommended for use in open environments.
We have a comprehensive after-sales service. This includes the installation and commissioning of the equipment to ensure that it can operate normally; technical training for the operating personnel; and a warranty service that provides free repair or replacement of faulty parts during the warranty period.
Contact Us Today For A Free Quote!
Turn your waste wood and branches into a valuable resource with our mobile wood and branch crushers. Contact us for:
✅ Customized quote
✅ Onsite demonstration and technical support
✅ Free consultation on field wood crushing solutions
Contact us today to optimize your waste wood and branch recycling and energy production efficiency.
