As a biomass energy engineer with over a decade of hands-on experience, I’ve helped dozens of clients set up rice husk pellet production lines. One challenge I consistently see is producing high-quality, durable rice husk pellets that meet industry standards—without excessive waste or machine downtime. Rice husk, a lightweight, high-silica agricultural residue, has unique properties that demand precise machine settings and strict process control. In this guide, I’ll share actionable, field-tested tips to maximize pellet quality using a rice husk biomass pellet machine, drawing on real-world projects and Huaxin Machinery’s technical expertise in biomass pellet production.
Why Rice Husk Pellets? The Value of Quality
Rice husk is one of the most abundant agricultural wastes globally, with millions of tons generated annually. Converting it into biomass pellets offers multiple benefits for renewable energy production:
- High energy density: Rice husk pellets have a density of 600–800 kg/m³, making storage and transportation cost-effective for both industrial and residential use.
- Clean combustion: Low moisture (10–15%) and consistent sizing reduce smoke and emissions, complying with eco-friendly fuel production standards.
- Renewable & sustainable: Reduces reliance on fossil fuels and minimizes agricultural waste disposal issues, aligning with global biomass energy trends.
However, low-quality rice husk pellets (crumbly, uneven, or high moisture) lead to:
- Reduced combustion efficiency and lower heat output (≤3200 kcal/kg vs. 3500–4000 kcal/kg for premium biomass pellets).
- Increased dust and waste during handling, cutting into profit margins for rice husk pellet producers.
- Clogged burners and reduced equipment lifespan, adding maintenance costs for users of rice husk pellet stoves and industrial boilers.
- Lost revenue—high-quality biomass pellets command 20–30% higher prices in the global market.
The key to avoiding these issues lies in mastering four core areas of rice husk pellet production: raw material preparation, rice husk biomass pellet machine setup, production process control, and post-production handling. Let’s dive into each with practical, machine-specific tips.
1. Raw Material Preparation: The Foundation of Quality Pellets
Rice husk’s natural properties—light weight, high silica content (~20%), and variable moisture—make proper pretreatment non-negotiable. Skipping or rushing this step guarantees poor pellet quality and frequent biomass pellet machine jams, a common frustration for rice husk pellet producers.
1.1 Moisture Control: The Critical 10–15% Range
Moisture is the single biggest factor affecting rice husk pellet formation. Rice husk straight from the field often has 20–30% moisture—way too high for pelleting.
- Optimal range: 10–15% moisture. At this level, lignin in the husk softens during compression, acting as a natural binder without additives, which is key for high-quality rice husk pellets.
- Too wet (>18%): Pellets crumble easily, mold clogs the biomass pellet machine, and drying costs surge—eating into profits for rice husk pellet production.
- Too dry (<8%): Excessive friction causes overheating, high energy use, and cracked pellets, reducing the value of your rice husk fuel pellets.
Pro Tip from My Projects: Use a three-pass rotary dryer with a biomass-fired hot air generator (energy-efficient and eco-friendly, aligning with renewable energy goals). Install inline moisture sensors to auto-adjust drying time—this keeps moisture within ±1% of target, critical for consistent quality in rice husk pellet production.
1.2 Particle Size Reduction: Uniformity = Durability
Raw rice husk is fibrous and irregular. For smooth pelleting with a rice husk biomass pellet machine, reduce to 3–5mm particles—a key step many producers overlook.
- Use a hammer mill with a 3–5mm screen: Avoid over-grinding (creates fine dust that clogsbiomass pellet machine molds) or under-grinding (long fibers jam the machine, causing downtime).
- Remove impurities: Add a magnetic separator to catch metal fragments (nails, wire) that damage mold and rollers—costly replacements that hurt rice husk pellet production profitability. Rocks and dirt increase ash content—use a vibrating screen to sift them out, ensuring clean rice husk pellets.
Real-World Example: A client in Thailand once skipped magnetic separation, leading to a cracked ring mold within 2 weeks. After adding a separator, mold lifespan extended to 8+ months—saving $5,000 in replacement costs and keeping their rice husk pellet production line running smoothly.
1.3 Material Consistency: Blend for Stability
Rice husk quality varies by harvest season, region, and rice variety. Blend batches to maintain consistent moisture content, particle size, and ash content (target ≤7% for premium biomass pellets), a must for meeting buyer expectations.
If blending with other biomass (e.g., sawdust for higher density), limit rice husk to 60–70% of the mix—its high silica can weaken pellets if overused, reducing the quality of your rice husk fuel pellets.
2. Rice Husk Biomass Pellet Machine Setup: Precision for Perfection
Even the best raw materials fail without proper rice husk biomass pellet machine setup. Rice husk’s unique characteristics demand customized settings different from wood or straw pelleting. Below are critical adjustments for your ring die pellet machine (the most common type for rice husk pellet production).
2.1 Ring Die Compression Ratio: The Most Important Setting
Compression ratio = effective die hole length ÷ hole diameter. For rice husk (high silica, low density), 4.5:1 to 5.5:1 is optimal—a key setting for high-quality rice husk pellets.
- Too high (>6:1): Excessive pressure causes overheating, high energy use, and frequent jams in the biomass pellet machine.
- Too low (<4:1): Pellets are soft, crumble, and have low density—unsellable as premium biomass pellets.
Huaxin Machinery Insight: Our rice husk biomass pellet machine uses a 5:1 compression ratio with 6–8mm holes (standard for rice husk fuel pellets). This balances durability and throughput (1–3 tons/hour for 132kW machines), ideal for small to medium rice husk pellet production lines.
2.2 Roller Gap Adjustment: 0.2–0.5mm for Rice Husk
The gap between rollers and die controls compression pressure—critical for rice husk pellet formation. For rice husk:
- Optimal gap: 0.2–0.5mm. This ensures enough pressure to bind pellets without damaging the biomass pellet machine.
- Too tight: Metal-on-metal contact wears parts and jams material, causing costly downtime for rice husk pellet producers.
- Too loose: Insufficient compression = weak pellets that break easily, reducing the value of your rice husk pellets.
Pro Tip: Adjust the gap when the rice husk biomass pellet machine is running (no load first) and monitor current draw—keep it at 70–80% of rated current for steady operation, maximizing both quality and efficiency in rice husk pellet production.
2.3 Die & Roller Maintenance: Preventive Care = Consistent Quality
Rice husk’s high silica is abrasive—wear parts (die, rollers) need regular inspection to keep your biomass pellet machine running and producing high-quality rice husk pellets:
- Daily: Check die holes for blockages; clean with a wire brush if needed—preventing jams and uneven pellet production.
- Weekly: Inspect rollers for wear; replace when grooves exceed 1mm depth—worn rollers produce inconsistent pellets.
- Monthly: Polish die holes to remove carbon buildup—this ensures smooth material flow and uniform pellet surface, a hallmark of premium biomass pellets.
My Experience: A client in Vietnam neglected die polishing, leading to rough pellet surfaces and 30% higher breakage. After monthly polishing, breakage dropped to <5%—meeting European biomass pellet quality standards and increasing their marketability.
3. Production Process Control: Real-Time Adjustments for Quality
Once setup is complete, consistent operation is key to high-quality rice husk pellet production. Even small fluctuations in feed rate or temperature ruin pellet quality. Here’s how to maintain control with your rice husk biomass pellet machine.
3.1 Feed Rate: Steady & Uniform
Rice husk is lightweight—avoid overfeeding (causes jams) or underfeeding (reduces density), both of which hurt rice husk pellet quality.
- Use a variable-speed screw feeder: Match feed rate to biomass pellet machine capacity (e.g., 2 tons/hour for a 2-ton machine) to ensure consistent compression.
- Install a level sensor in the hopper: Maintains a consistent material head, preventing uneven feeding and ensuring uniform rice husk pellet formation.
3.2 Temperature Monitoring: 70–100°C at Die Exit
Compression generates heat—70–100°C is ideal for rice husk, a critical temperature for binding pellets without damaging them.
- Why? Softens lignin for binding without burning the husk, ensuring strong, high-quality rice husk pellets.
- Too hot (>110°C): Pellets darken, lose energy content, and crack—unsuitable for rice husk fuel pellets.
- Too cold (<60°C): Lignin doesn’t soften—pellets crumble, wasting rawrice husk and reducing production efficiency.
Actionable Tip: Install a temperature sensor at the die exit of your rice husk biomass pellet machine. If too hot, reduce feed rate or widen the roller gap slightly. If too cold, increase feed rate or narrow the gap—simple adjustments that keep rice husk pellet quality consistent.
3.3 Cooling & Screening: Lock in Quality
Fresh rice husk pellets are hot (70–100°C) and soft—cool to ambient temperature (25–35°C) immediately with a counterflow cooler, a must for preserving quality.
- Why? Prevents cracking and hardens the pellets, ensuring they hold up during storage and transportation—critical for rice husk pellet producers selling to distant markets.
- Screening: Use a vibrating screen to remove fines and broken pellets (target <5% breakage). Fines can be recycled back into the process—no waste, maximizing rice husk pellet production efficiency.
4. Post-Production Handling & Quality Testing
Quality control doesn’t end at the rice husk biomass pellet machine. Proper handling and testing ensure your rice husk pellets meet buyer specifications and maintain their value aspremium biomass pellets.

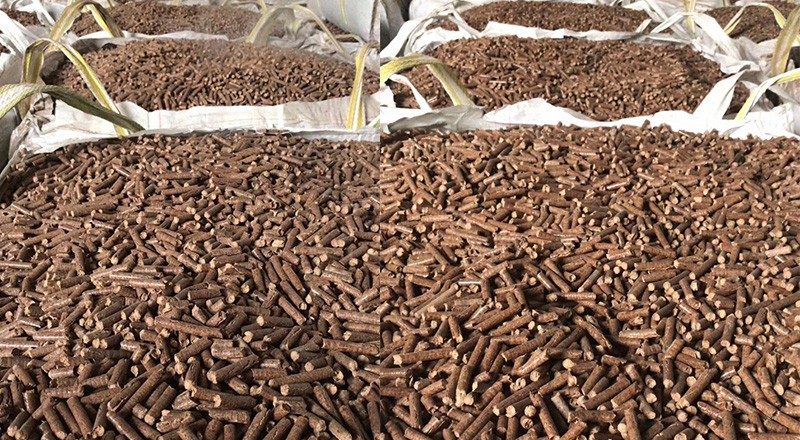

4.1 Storage: Keep Dry & Ventilated
- Moisture regain: Cooled rice husk pellets absorb moisture from humid air—store in a dry, covered warehouse with good ventilation to maintain 10–15% moisture, the key to high-quality biomass pellets.
- Avoid direct contact with concrete: Use pallets to prevent moisture absorption from the floor, which can ruin batches of rice husk fuel pellets.
4.2 Quality Testing: Key Metrics to Check
Test every batch for these critical parameters (use standardbiomass pellet testing methods) to ensure you’re producing high-quality rice husk pellets:
- Moisture: 10–15% (use a moisture meter)—the foundation of pellet quality.
- Density: ≥650 kg/m³ (higher = better quality, more valuable rice husk pellets).
- Durability: ≥95% (tumbler test—measures breakage resistance, a key buyer requirement).
- Ash content: ≤7% (lower = cleaner burning, ideal for eco-friendly fuel production).
- Calorific value: ≥3500 kcal/kg—ensures your rice husk fuel pellets deliver consistent heat.
My Recommendation: Keep a simple test kit on-site—this lets you catch quality issues early, before full production, saving time and money for rice husk pellet producers.
5. Common Mistakes to Avoid (From My Field Experience)
After working with 50+ rice husk pellet production projects, these are the most frequent mistakes that ruin quality and profitability for rice husk pellet producers:
- Skipping moisture control: Wet husk = crumbly pellets and biomass pellet machine jams—easily avoidable with proper drying.
- Using the wrong compression ratio: Too high = overheating; too low = weak pellets—follow the 4.5:1 to 5.5:1 range for rice husk.
- Neglecting die maintenance: Worn dies produce uneven, rough pellets—regular cleaning and polishing extend die life and maintain rice husk pellet quality.
- Overfeeding: Causes jams and inconsistent compression—use a variable-speed feeder to match rice husk biomass pellet machine capacity.
- Skipping cooling: Hot pellets crack easily during handling—invest in a counterflow cooler to lock in quality.
- Avoid these, and you’ll eliminate 90% of quality issues in rice husk pellet production.
Conclusion
Producing high-quality rice husk pellets with a rice husk biomass pellet machine is not complicated—but it requires precision and consistency. By mastering raw material preparation (moisture, particle size), setting up your biomass pellet machine correctly (compression ratio, roller gap), controlling the rice husk pellet production process (temperature, feed rate), and implementing strict quality testing, you can consistently produce premium biomass pellets that meet global standards.
At Huaxin Machinery, we’ve designed our rice husk biomass pellet machine specifically for these challenges—with customized ring dies, PLC smart control, and energy-efficient drying systems. Our clients routinely achieve 95%+ durability, 10–12% moisture, and 3500+ kcal/kg calorific value—maximizing their ROI as rice husk pellet producers.
FAQs
1. What is the best moisture content for rice husk pelleting?
10–15% is optimal. This range softens lignin for natural binding without additives, ensuring durable high-quality rice husk pellets.
2. What compression ratio should I use for rice husk in a biomass pellet machine?
4.5:1 to 5.5:1. Rice husk’s high silica content requires lower compression than wood or straw to avoid overheating and jams.
3. Do I need additives for rice husk pellets?
No. Proper moisture (10–15%) and compression activate natural lignin binders. Additives increase costs and may reduce the quality of your rice husk fuel pellets.
4. How long does a ring die last for rice husk pelleting?
With proper maintenance (daily cleaning, weekly inspection), 8–12 months. Rice husk’s silica is abrasive—regular care extends lifespan and reduces rice husk pellet production costs.
5. What’s the ideal pellet size for rice husk fuel pellets?
6–8mm diameter. This balances combustion efficiency, storage ease, and buyer demand for rice husk pellets.
6. Why are my rice husk pellets crumbly?
Common causes: moisture >18%, compression ratio too low, insufficient cooling, or worn die/rollers in your rice husk biomass pellet machine.
7. How much does a rice husk biomass pellet machine cost?
Prices vary by capacity (1–3 tons/hour) and automation level. Contact Huaxin Machinery for a free customized quote based on your rice husk pellet production needs.
8. Can I mix rice husk with other biomass materials for pelleting?
Yes. Limit rice husk to 60–70% of the mix. Adding sawdust or wood chips can increase rice husk pellet density and durability, making them more marketable.
9. What temperature should I maintain at the die exit of my biomass pellet machine for rice husk?
70–100°C. This softens lignin without burning the husk, ensuring strong, durablehigh-quality rice husk pellets.
10. How do I reduce fines and broken rice husk pellets?
Ensure proper cooling (to ambient temperature), use a vibrating screen to remove fines, and maintain consistent feed rate and compression with your rice husk biomass pellet machine.
11. What is the typical energy consumption for rice husk pellet production?
120–150 kWh per ton of pellets. Using energy-efficient dryers and motors (IE3+) can reduce consumption by 15–20%, lowering rice husk pellet production costs.
12. How do I store rice husk pellets to prevent moisture regain?
Store in a dry, ventilated warehouse on pallets. Avoid direct contact with concrete or humid air to maintain 10–15% moisture, preserving rice husk pellet quality.
