Sawdust Briquetting Machine
High-Efficiency Carbon Rod Pressing Equipment

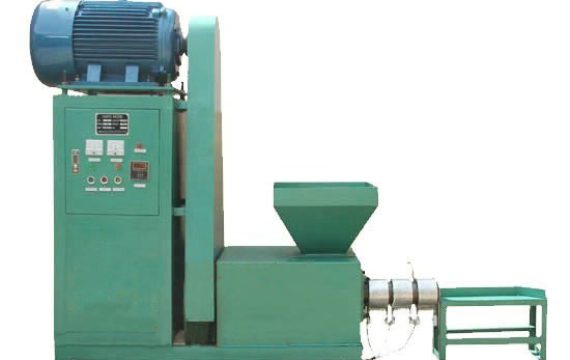

Sawdust Briquetting Machine Overview
Sawdust briquetting machine is a special equipment used to compress sawdust, wood shavings and other biomass into dense carbon rods for charcoal production. The equipment adopts high-pressure molding mechanism to compress loose sawdust briquettes (carbon rods) into uniform and high-strength ones, which are ideal for the subsequent carbonization process.

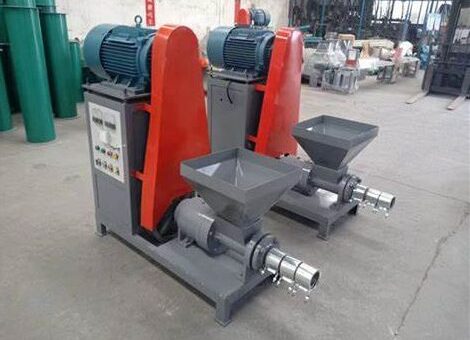

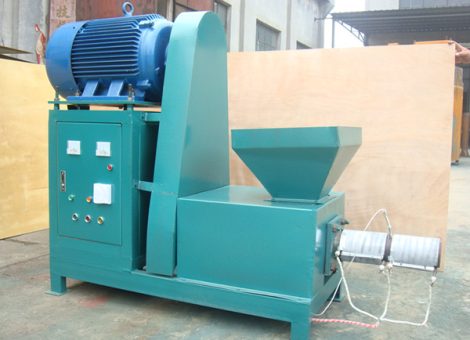

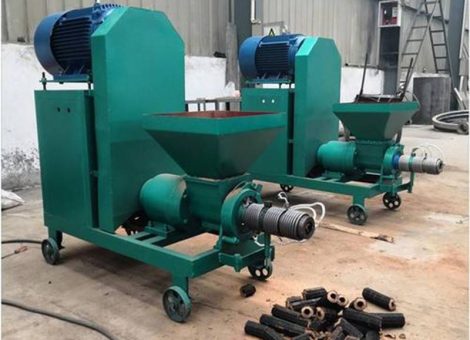

Sawdust Briquetting Machine for Sale
Product Details
Features and Advantages of Sawdust Briquetting Machine
Features and Advantages
High pressing strength
The equipment can produce carbon rods with a density of up to 800-1100 kg/m³, ensuring low breakage rate and high calorific value of carbon rods during carbonization.
Adjustable carbon rod diameter
By replacing the mold, the carbon rod diameter (30-100 mm) and length (100-300 mm) can be customized to meet different carbon rod production needs.
Low power consumption
The optimized mechanical design reduces energy consumption by 35% compared with traditional pressing machines, and the electrical efficiency per ton of carbon balls can reach 5-7 kWh.
High production capacity
300-500 kg of carbon rods can be produced per hour, suitable for small carbon workshops and large industrial production lines.
Technical Parameters of Sawdust Briquetting Machine
Main Technical Parameters
| Modle | Main Motor(kw) | Capacity (t/h) | Rod Diameter (mm) | Feed size (mm) | Moisture Content |
|---|---|---|---|---|---|
| HXSB-300 | 15 | 220-300 | 30-60 | ≤5mm | ≤ 12 |
| HXSB-600 | 18.5 | 300-400 | 60-80 | ≤5mm | ≤ 12 |
| HXSB-1000 | 22 | 400-500 | 80-100 | ≤5mm | ≤ 12 |

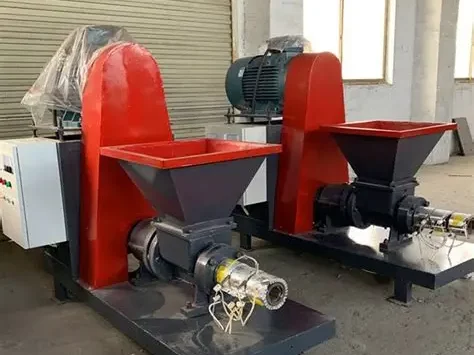

Working Principle of Sawdust Briquetting Machine
Working Principle
- Feed Preparation: Sawdust is pre-dried to ≤ 12% moisture and screened to ≤5mm particle size.
- Feeding: Prepped sawdust is fed into the hopper and conveyed to the pressing chamber by a screw feeder.
- High-Pressure Forming: The motor drives the pressing shaft to exert vertical pressure on the sawdust, forcing it through the mold. The high pressure compresses the sawdust into dense carbon rods.
- Ejection & Cutting: Formed rods are ejected by a hydraulic piston and cut to uniform length by a rotating blade.
- Discharge: Cut carbon rods are conveyed out for air-drying before carbonization.
Application Scenarios of Sawdust Briquetting Machine
Application Scenarios
Industrial charcoal production
High-density charcoal rods can produce high-quality charcoal for the metallurgical, water purification and chemical industries.
Household charcoal production
Uniform charcoal rods are ideal for barbecue and heating, meeting consumers' demand for clean fuel.
Biochar production
Charcoal rods can be processed into biochar for soil improvement, improving agricultural fertility and water retention.
Sawmill waste utilization
Convert sawdust, shavings and other by-products into valuable charcoal rods, with a waste recovery rate of up to 95%.
Successful Cases of Sawdust Briquetting Machine
Successful Cases
Charcoal Factory in Vietnam
Using HXSB-1000, the factory processes 10 tons of sawdust daily into carbon rods, increasing charcoal yield by 40% and reducing production costs by 30%.
Agricultural Cooperative in Kenya
The cooperative uses HXSB-600 to produce carbon rods for biochar, improving soil quality on 500 hectares of farmland and increasing crop yields by 25%.

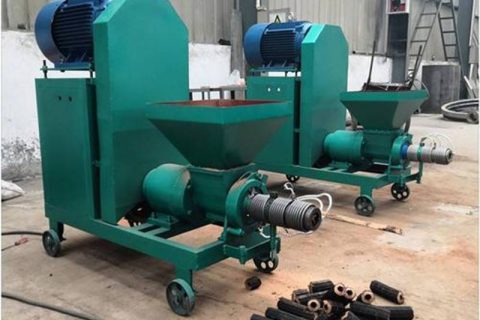

Waste Management Firm in India
The firm processes mixed wood waste with HXSB-600, producing 15 tons/day of carbon rods for industrial charcoal, generating $15,000 monthly revenue.
Frequently Asked Questions
The ideal moisture is 8%–12%. Higher moisture may cause rod cracking during carbonization, while lower moisture reduces compressibility.
es. It efficiently processes rice husks, coconut shells, and straw, provided they are crushed to ≤ 5 mm and dried to ≤ 12% moisture.
Molds have a service life of 5000–8000 hours with regular maintenance, depending on material abrasiveness.
High-density rods have a carbonization rate of 85%–90%, significantly higher than loose sawdust (60%–70%).
Yes. We offer customized mold sizes, feeding systems, and integrated drying units to meet specific production needs.
Contact Us Today For A Free Quote!
Transform sawdust waste into high-value carbon rods with our Sawdust Briquetting Machine. Contact us for:
✅ Customized quotes and carbonization line design
✅ On-site demonstration and technical support
✅ Free consultation on biomass charcoal solutions
Contact Us Today to optimize your waste recycling and unlock new revenue streams from charcoal production.
