Sawdust Production Line
Efficient Wood Waste Conversion for Diverse Industrial Applications
Sawdust Production Line
As a leading provider of biomass processing solutions, Huaxin Machinery offers an advanced high-efficiency sawdust production line for biomass fuel & wood board manufacturing – engineered to turn logs into high-quality uniform particle size sawdust pellets through a seamless process of feeding, slicing, crushing, screening, and conveying. Our system delivers consistent sawdust particle size, high automation, low energy use, and full compliance with environmental protection standards for sawdust production. It’s the perfect fit for large-scale operations in wood powder manufacturing, board production, charcoal making, and biomass fuel production industries.
Annual Production Capacity of Sawdust Production Line
Annual production capacity
| Capacity Type | Annual Output | Application Scenarios |
|---|---|---|
| Small-scale Line | 10,000 tons | Ideal for small woodworking factories or rural cooperatives – a low investment compact sawdust production line with a space-saving footprint. |
| Medium-scale Line | 30,000 tons | Perfect for regional wood processing centers, delivering reliable performance and high efficiency thanks to optimized sawdust production equipment configuration. |
| Large-scale Line | 50,000+ tons | Custom-built for major wood companies and biomass energy enterprises, featuring fully automated systems that enable continuous high-volume sawdust production. |
Equipment Configuration of Sawdust Production Line
Equipment Configuration & Technical Highlights
1. Log Preprocessing System
Hydraulic Log Feeder for Sawdust Line: This automated feeder has an anti-jamming design and handles logs up to 30cm in diameter, keeping your processing running without interruptions.
High-speed Drum Chipper for Wood Chipping: Its fast-spinning blades turn logs into 1-3cm wood chips, with adjustable cutting depth to ensure uniform wood chipping for sawdust production.
Magnetic Separator for Sawdust Processing: Removes metal contaminants to protect critical sawdust crushing equipment, keeping your line safe and extending equipment life.
2. Crushing & Screening System
Heavy-Duty Hammer Crusher for Sawdust Making: Fitted with wear-resistant alloy hammers, it crushes wood chips into 2-5mm sawdust particles – works equally well for softwood and hardwood, making it ideal for biomass fuel sawdust production.
Multi-Layer Vibrating Screen for Sawdust Classification: The 3-tier screen sorts sawdust into three sizes (≤1mm, 1-3mm, 3-5mm) to meet diverse industrial sawdust application needs.
Cyclone Dust Collector for Eco-Friendly Sawdust Production: A 99% efficient dust removal system that meets EPA air quality standards for sawdust processing, keeping your operation eco-compliant.
3. Drying & Conveying System
Energy-Saving Rotary Drum Dryer for Sawdust: Uses hot air circulation to drop moisture from 40% down to 8-12%, with a heat recovery system cutting energy costs by 30% – perfectly tuned for biomass fuel sawdust moisture control.
Sealed Belt Conveyor for Dust-Free Sawdust Transfer: Stainless steel belts ensure dust-free material movement between processes, boosting safety for large-scale sawdust production lines.
4. Intelligent Control System
PLC Centralized Control Panel for Sawdust Line: Monitors real-time production data (feed rate, particle size, moisture) and auto-adjusts settings to maximize optimal sawdust production efficiency.
Remote Monitoring Module for Sawdust Equipment: Cloud-connected remote diagnostics and maintenance minimize downtime, keeping continuous sawdust production operations running smoothly.
Production Process of Sawdust Production Line
Production process
1. Log Feeding & Chipping
Logs are loaded into the hydraulic feeder, which moves them to the drum chipper for initial chipping. The chipper’s precision blades create uniform wood chips for sawdust crushing, ready for the next crushing step.
2. Fine Crushing
Wood chips go into the hammer crusher, where high-speed rotation and impact turn them into sawdust. The crusher’s adjustable screen lets you tweak customization of sawdust particle fineness to match your industrial needs.
3. Screening & Classification
Crushed material passes through the vibrating screen, separating into undersized (≤1mm), standard (1-3mm), and oversized (3-5mm) particles. Oversized material gets recycled for re-crushing to meet sawdust size specifications.
4. Moisture Control
Depending on how you’ll use the sawdust, it may go into the rotary dryer to hit target moisture levels – 8-12% for biomass fuel sawdust, and 4-6% for wood board manufacturing sawdust.
5. Packaging & Storage
Finished sawdust is sent to automatic bagging machines (5-50kg bags) or bulk storage silos. Anti-humidity packaging keeps product stability of sawdust during transport and storage.
Raw Material Type of Sawdust Production Line
Raw material type
Softwood for Sawdust Production
Pine, spruce, fir – perfect for low-ash biomass fuel sawdust and wood pulp, offering great combustion efficiency for energy uses.
Hardwood for Sawdust Production
Oak, beech, maple – ideal for high-density wood board sawdust and premium charcoal, ensuring top-notch quality for finished products.
Mixed Wood for Cost-Effective Sawdust Production
Industrial waste from furniture making, construction debris, and tree trimmings – a budget-friendly choice for bulk biomass pellet sawdust applications.
Finished Product Specifications of Sawdust Production Line
Finished Product Specifications
| Parameter | Standard Range | Application Notes |
|---|---|---|
| Particle Size | 0.5-5mm | Adjustable sawdust particle size via screening for different uses – 0.5-1mm for wood powder, 3-5mm for biomass pellets sawdust, for example. |
| Moisture Content | 8-12% | Boosts combustion efficiency in biomass fuel sawdust applications; lower levels (4-6%) prevent warping in wood board manufacturing. |
| Bulk Density | 200-400 kg/m³ | Varies by wood type – hardwood sawdust has higher density, great for compressed sawdust products like briquettes and pellets. |
| Impurity Content | ≤0.5% | Strict control of metal, bark, and foreign matter to meet industrial quality standards for sawdust production. |

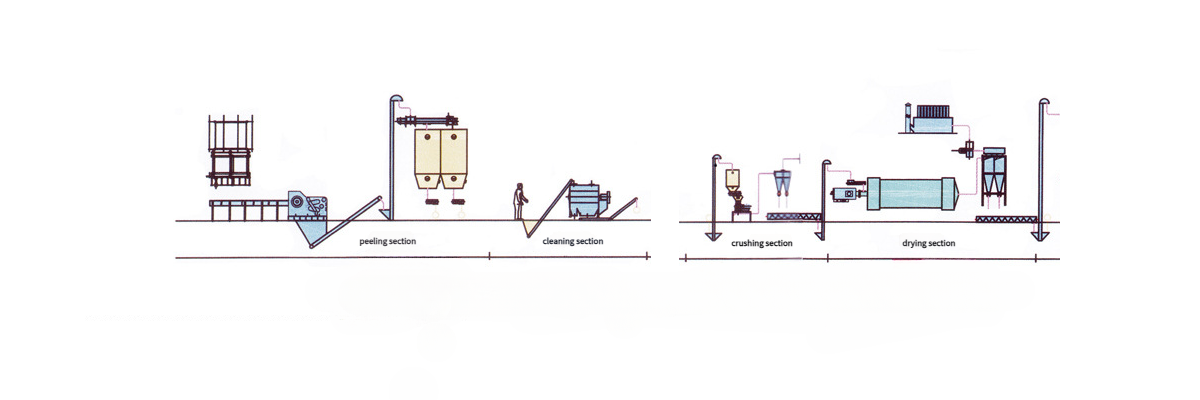

Schematic Diagram of Production Process of Sawdust Production Line
Production Process Diagram
Successful Cases of Sawdust Production Line
Successful Cases
India Briquetting Plant
We installed a medium-scale sawdust production line for biomass briquette manufacturing that hits 30,000 tons of annual output, with 99% particle uniformity – perfect for high-quality briquettes.
Wood Powder Line in Vietnam
A small-scale sawdust production line for wood powder manufacturing was set up here, consistently producing 0.5-1mm sawdust ideal for incense and handicraft production.
India Sawdust Briquettes Plant
We delivered a customized high-efficiency sawdust production line for briquette production that cut energy use by 25% while boosting output by 15%.
