Pellet plants play a vital role in a wide range of industries, transforming raw materials into high-value, easy-to-handle pellets. Understanding the different types of pellet plants is essential for businesses and individuals looking to get involved in these industries.

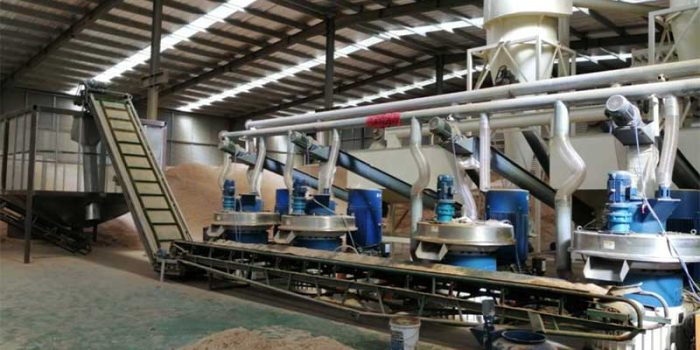

Type 1: Wood Pellet Plants
Wood pellet plants are at the forefront of the biomass energy revolution. They transform raw materials such as wood chips and wood chips into high-quality fuel pellets. The process begins with a chipper, which cuts large pieces of wood into smaller, easier-to-handle wood chips. These wood chips are then dried in a specialized dryer to reduce the moisture content, as too much moisture can hinder the pelletizing process and reduce the energy value of the final product. Finally, the dried wood chips are fed into a pelletizer, where they are compressed into cylindrical pellets through small die holes under high pressure.
These pellets are a clean and efficient energy source. They are widely used for heating homes, providing a cost-effective and environmentally friendly alternative to traditional fossil fuels. In industrial settings, they power the plant’s boilers, thereby reducing carbon emissions and reliance on non-renewable energy.

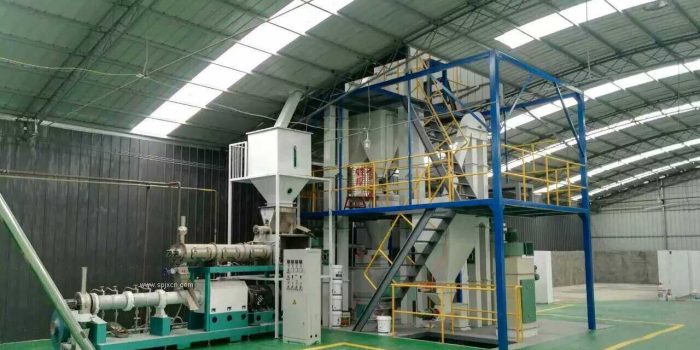

Type 2: Feed Pellet Plants
Feed pellet plants are dedicated to producing nutritious, easy-to-eat feed for livestock. The production process begins with the collection of various feed ingredients, including grains, proteins, vitamins and minerals. These ingredients are carefully weighed and mixed according to specific feed recipes to meet the nutritional needs of different animals at different growth stages.
The mixed ingredients then pass through a pellet mill. During this process, heat and pressure are applied, which not only binds the ingredients together but also improves the digestibility of the feed. Pellet feed has many advantages in animal husbandry. It is easier to store and transport than bulk feed because pellet feed is less likely to spill or get wet. In addition, animals tend to eat pellet feed more efficiently, reducing waste and ensuring they get all the nutrients they need for healthy growth. Quality control in feed pellet plants is critical, and regular checks are required to check the nutritional content, durability of pellets, and the presence of contaminants to ensure the health of the animals.

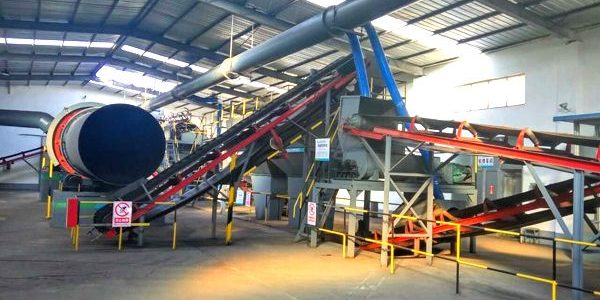

Category 3: Fertilizer Pellet Plants
Fertilizer pellet plants convert powdered fertilizer into pellets, bringing significant benefits to agriculture. Granular fertilizers are less susceptible to wind and water erosion, which means fewer nutrients are lost to the environment. This not only helps reduce pollution, but also improves the overall utilization of fertilizers because plants can absorb nutrients more efficiently over a longer period of time.
A variety of equipment is used in these plants. Disc pelletizers are common, where powdered fertilizer is placed on a rotating disc. Binders and water are added, and as the disc rotates, the particles agglomerate to form pellets. Extrusion pelletizers are another option, especially for fertilizer formulations that are more viscous or difficult to handle. Extrusion pelletizers squeeze the material through a die to form uniform pellets. Different fertilizer formulations, whether nitrogen-rich, phosphorus-based or complex fertilizers, require specific adjustments in the pelletizing process to ensure proper pellet formation and nutrient stability.
Category 4: Biomass Pellet Plants (Non-Wood)
Biomass pellet plants that focus on non-wood materials are making a significant impact on waste management and sustainable energy production. They utilize abundant agricultural byproducts such as straw, rice husks, and peanut shells. Given the high fiber content and diverse nature of these materials, special pre-treatment is required. For example, straw may need to be chopped into smaller pieces and subjected to a fermentation process to break down some of the tough fibers.
After pre-treatment, these materials are processed in a similar way to wood pellet production. They are dried and then pelletized using suitable machinery. These plants are essential for the resource conversion of agricultural waste. Instead of being left in the fields to decompose or burned (as this can cause pollution), the material is converted into valuable products. The pellets can be used as a renewable energy source, similar to wood pellets, or as raw materials in certain industrial processes.
Category 5: Mineral Pellet Plants
Mineral pellet plants are vital in industries such as metallurgy and construction. In the metallurgical industry, they form fine-grained mineral powders into larger, easier-to-handle pellets. A common method is disc pelletization, where mineral powders are placed on a rotating disc along with a binder. As the disc rotates, the particles gradually form into pellets under the combined action of gravity and mechanical forces. Cylindrical pelletization, which is often used for large-scale production, uses a drum-like device to achieve the same effect.
In the steelmaking process, pellets (called “pellets”) can increase the permeability of the charge. This allows for smoother gas-solid reactions, thereby improving smelting efficiency and steel quality. In the construction industry, mineral pellets can be used to produce lightweight aggregates and incorporated into concrete to reduce concrete weight while maintaining strength.
Conclusion
In the steelmaking process, pellets (called “pellets”) can increase the permeability of the charge. This allows for smoother gas-solid reactions, thereby improving smelting efficiency and steel quality. In the construction industry, mineral pellets can be used to produce lightweight aggregates and incorporated into concrete to reduce concrete weight while maintaining strength.
