Introduction
The journey from raw wood materials to high – quality wood pellets is a complex process that demands a series of well – coordinated equipment. Each piece of equipment plays a distinct and crucial role, from reducing the size of raw materials to shaping them into uniform pellets and finally preparing them for storage and sale. By understanding the different types of equipment involved, producers can optimize their production processes, enhance pellet quality, and increase overall efficiency.
Raw Material Pretreatment Equipment
Wood Chippers
Wood chippers are the first line of defense in processing large wood materials. There are two main types: disc chippers and drum chippers. Disc chippers feature a rotating disc with sharp blades. As the wood is fed into the machine, the blades on the disc slice through it, reducing the large pieces into smaller chips. These are highly effective for processing limbs, barks, and wood scraps. They can handle materials over 100 mm in diameter, making them suitable for various feedstock sources.
Drum chippers, on the other hand, have a parallel – sided drum with knives attached horizontally. Behind the rotating knives, a chip breaker is arranged perpendicular to the blades. This type is often used for larger – scale operations, such as by park workers or land developers. It can process logs, crotches, and planks of significant sizes, turning them into small chips. The capacity of wood chippers varies widely, with larger industrial models capable of processing several tons of wood per hour, while smaller, more portable units are suitable for home or small – scale operations.
Hammer Mills
Once the wood has been chipped, hammer mills come into play. The function of a hammer mill is to further reduce the size of the chipped material. Inside the mill, hammers are attached to a rotating shaft. As the shaft spins at high speeds, the hammers strike the wood chips, breaking them down into even smaller particles. The toothed plates inside the mill also contribute to the size reduction process. Hammer mills are essential in the wood pellet making process as they ensure that the raw material is of an appropriate size for pelletizing. They can reduce the size of materials from 10 – 30 mm down to 2 – 5 mm, making the particles suitable for the next steps in the production line.
Dryers
Moisture content is a critical factor in wood pellet production. Airflow dryers and drum dryers are commonly used to reduce the moisture in the raw materials. Airflow dryers work by passing hot air over the small – sized wood particles. The hot air evaporates the moisture from the material as it is conveyed through the dryer. This type of dryer is suitable for raw materials that are already relatively small, typically under 3 – 5 mm.
Drum dryers, on the other hand, are larger and more versatile. They consist of a rotating drum through which the wood material is fed. Hot air is introduced into the drum, and as the drum rotates, the material tumbles and is evenly dried. Drum dryers have a higher capacity and are able to handle a wider range of raw materials. By reducing the moisture content of the wood to an optimal level, usually between 8% – 12%, dryers ensure that the pelletizing process can be carried out smoothly and that the resulting pellets have good quality and durability.
Pelletizing Equipment
Flat - Die Pellet Mills
Flat – die pellet mills are a popular choice for small – scale wood pellet production. The structure of a flat – die pellet mill consists of a flat die plate and rollers. The pre – treated raw material is fed onto the die plate, and as the rollers rotate, they press the material through the holes in the die plate, forming pellets. This type of pellet mill has a relatively simple structure, which makes it easier to operate and maintain. It is also more affordable compared to some other models, making it accessible to beginners or those with limited budgets.
However, flat – die pellet mills also have their limitations. Their production capacity is generally lower, usually under 1 t/h. Despite this, they are capable of producing high – quality wood pellets, especially when the production scale is small. They are also suitable for producing pellets from a variety of biomass materials, not just wood.
Ring - Die Pellet Mills
For large – scale wood pellet production, ring – die pellet mills are the go – to option. The design of a ring – die pellet mill features a rotating ring die and rollers. The raw material is fed into the space between the ring die and the rollers. As the ring die rotates, the rollers press the material against the inner surface of the ring die, forcing it through the die holes to form pellets. Ring – die pellet mills are known for their high – efficiency features. They can achieve high production capacities, often ranging from 1 – 12 tons per hour, depending on the model.
These pellet mills are highly automated, which allows for continuous and large – scale production. They are widely used in commercial biomass pellet plants where large quantities of high – quality wood fuel pellets are required. The ability to produce a large volume of consistent, high – quality pellets makes ring – die pellet mills an essential component in large – scale wood pellet production facilities.
Post - Processing Equipment
Pellet Coolers
After the pelletizing process, the newly formed wood pellets are hot and have a relatively high moisture content. Pellet coolers, often referred to as counter – flow coolers, are used to address this issue. The function of a pellet cooler is to reduce the temperature and moisture of the wood pellets. In a counter – flow cooler, the hot pellets are fed into the top of the cooler, while cool air is blown in from the bottom. As the pellets move down through the cooler, they come into contact with the upward – flowing cool air. This counter – flow design ensures efficient heat and moisture transfer.
By cooling the pellets to near – room temperature and reducing their moisture content to an appropriate level, the cooler helps to improve the hardness and durability of the pellets. This is crucial as it prevents the pellets from breaking or degrading during storage and transportation.

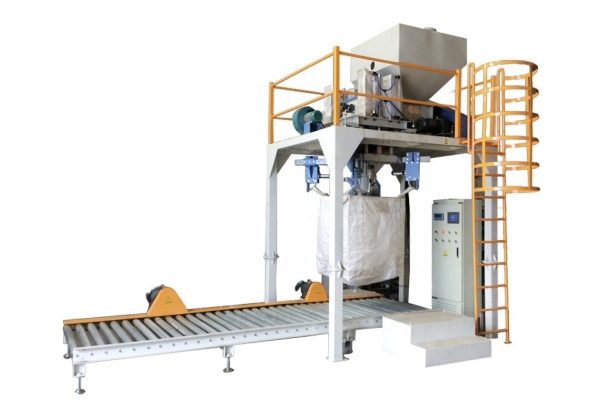

Pellet Packing Machines
Pellet packing machines play a vital role in the final stage of wood pellet production. Their main function is to weigh, pack, and seal the pellets for storage and sale. These machines can automatically measure a specific quantity of pellets, usually in weights ranging from 10 kg to 100 kg or even in larger tonnage scales in some industrial settings. Once the correct amount of pellets is measured, the machine packs them into suitable bags, which are often made of plastic or other moisture – resistant materials.
After packing, the machine seals the bags to ensure that the pellets are protected from moisture, dust, and other contaminants. Good packaging not only preserves the quality of the wood pellets but also enhances their marketability. It provides a professional appearance and makes it easier for customers to handle and store the pellets.
Integrating Equipment into a Production Line
In a complete wood pellet production line, all the equipment mentioned above works in harmony. The process starts with large wood materials being fed into wood chippers, which reduce them to smaller chips. These chips are then further processed by hammer mills to achieve the right particle size. The resulting small – sized particles are then dried in either airflow or drum dryers to reduce moisture content.
The pre – treated and dried material is then fed into pellet mills, either flat – die for small – scale production or ring – die for large – scale operations. After the pellets are formed, they are immediately sent to pellet coolers to bring down their temperature and moisture. Finally, the cooled and hardened pellets are packed by pellet packing machines for storage and distribution.
Proper equipment selection based on production scale is of utmost importance. For small – scale producers, investing in smaller, more affordable equipment such as flat – die pellet mills, smaller wood chippers, and basic drying and packing equipment is a cost – effective solution. On the other hand, large – scale commercial operations require high – capacity, automated equipment like ring – die pellet mills, large – scale drum dryers, and high – speed packing machines to meet the demands of mass production.
Conclusion
In conclusion, efficient wood pellet making requires a combination of high – quality equipment at every stage of the production process. Raw material pretreatment equipment such as wood chippers, hammer mills, and dryers lay the foundation by preparing the wood material for pelletizing. Pelletizing equipment, with flat – die and ring – die pellet mills catering to different production scales, shapes the material into pellets. Post – processing equipment like pellet coolers and packing machines ensure the pellets are of good quality and ready for the market.
For readers looking to find reliable equipment suppliers, online directories dedicated to biomass energy equipment, industry – specific trade shows, and recommendations from other wood pellet producers can be valuable resources. By making informed decisions about equipment selection and integration, wood pellet producers can build a successful and efficient production operation, contributing to the growth of the sustainable biomass energy industry.
