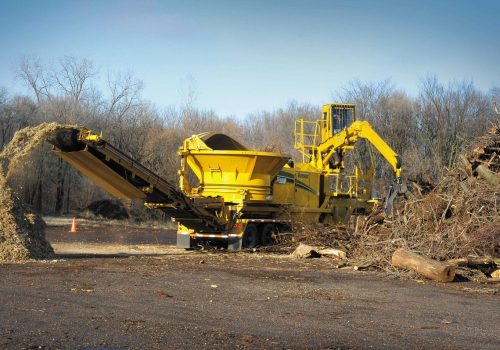

Tree Root Wood Crusher
The best solution for efficiently shredding roots and large hardwoods

Tree Root Wood Crusher Overview
Tree roots wood crusher is a professional heavy-duty crushing equipment designed for processing tree roots, trunks and other large hard woods. Driven by a high-power motor and equipped with high-strength blades and wear-resistant parts, the machine can quickly crush hard tree roots into wood chips or small pieces.
Product Details of Tree Root Wood Crusher
Product Details



Features and Advantages of Tree Root Wood Crusher
Features and Advantages
Super Power System
Equipped with a high-power motor or diesel engine, the blades are made of high-strength alloy, which can easily cope with hard roots with large diameters.d
Efficient production capacity
Large disc feeder with smooth feeding, supports large-volume continuous operation with output up to several tonnes per hour or more.
Sturdy and Durable
The main body of the equipment is made of thick steel plate structure, and the key components are designed to be wear-resistant, suitable for long-time and high-intensity work.
Strong adaptability
Supports wet and dry root treatment for a wide range of scenarios, and is equipped with wheels conveniently designed for trailers for on-site operation.
Main Technical Parameters of Tree Root Wood Crusher
Main Technical Parameters
Modle | Power (kw) | Capacity (t/h) | Feed diameter (cm) | Output size (mm) | Machine Size (m) |
---|---|---|---|---|---|
HXTRC1000 | 55 | 5-8 | ≤50cm | 1-50mm | 3.8×2.1×2.5m |
HXTRC2000 | 75 | 8-12 | ≤70cm | 1-50mm | 4.5×2.8×2.8m |
HXTRC3000 | 90 | 12-18 | ≤90cm | 1-50mm | 5.2×3.5×3.0m |

Working Principle of Tree Root Wood Crusher
Working Principle
Tree root wood crusher mainly utilizes the principles of impact, shear and extrusion. Tree roots are fed into the crushing chamber by the feeding device, and the high-speed rotating spindle drives the knives on the cutter plate to impact and shear the roots to make them broken. At the same time, the liner plate and knives in the crushing chamber cooperate with each other to produce extrusion on the roots, which will be further crushed into small particles and discharged from the discharge port.
Application Scenarios of Tree Root Wood Crusher
Application Scenarios
Garden Waste Clearance
Rapidly process waste tree roots from landscaping to make mulch or compost material for resource reuse.
Wood processing and recycling
Waste tree roots are crushed into wood chips, which are used in wood industry processing such as paper making and board production.
Biomass Energy
Crushed wood chips can be used for biomass fuel pellet production, which is widely used in the field of clean energy.
Land Rehabilitation
Remove tree root residues left in the land for easy ploughing, building development or agroforestry renovation use.
Frequently Asked Questions.
It is suitable for processing large roots, trunks and hardwoods of all diameters, both wet and dry. For particularly hard wood materials, it is recommended that you choose a high power model to ensure treatment results.
Yes, crushed pellets are usually uniform in size and can be used directly in compost, biomass fuels, horticultural mulch or wood processing. If a specific particle size is required, the screen size can be adjusted to meet the demand.
It won’t. The equipment is designed with scientific crushing chamber and powerful power system, which can effectively deal with tree roots with high moisture content and avoid the problem of clogging or decreased efficiency.
We offer a trailer mounted mobile design that makes it easy to transport the unit to different job sites, perfect for field operations or garden waste removal. Stationary units are suitable for the centralised processing needs of large plants.
The equipment adopts high-efficiency energy-saving motors with relatively low energy consumption, and the unit processing cost is significantly lower than that of traditional equipment. Meanwhile, the ineffective energy consumption in operation is reduced by optimising the blade design.
