When I first started exploring the charcoal production business, I was overwhelmed by the equipment choices. Like many aspiring charcoal factory owners, I had questions racing through my mind: Which kiln type gives the best return? How much will it actually cost? Will the quality meet market standards?
After months of research and talking to established producers, I kept coming back to one piece of equipment that consistently stood out—the vertical carbonization kiln. Let me walk you through why this might be the smartest investment you’ll make for your charcoal business.

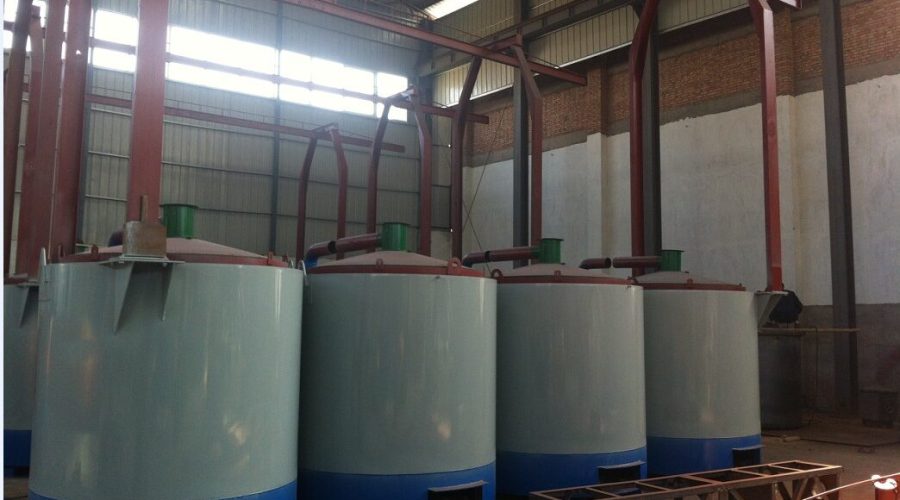

What Exactly Is a Vertical Carbonization Kiln?
A vertical carbonization kiln—also called a hoisting carbonization furnace—is a piece of charcoal production equipment designed to convert biomass materials into high-quality charcoal through anaerobic pyrolysis. Unlike traditional earth kilns that take days and produce inconsistent results, modern vertical carbonization furnaces complete the carbonization process in 8 to 10 hours per batch.
The working principle is straightforward yet brilliant. Raw materials like wood logs, coconut shells, bamboo, or biomass briquettes are loaded into inner pots and placed inside the furnace. The kiln heats the material in an oxygen-free environment, driving off volatile compounds and leaving pure carbon behind.
What impressed me most is the self-sustaining design. After about an hour of initial heating, the furnace begins burning the syngas it produces—the smoke that would otherwise be wasted. This means you’re not constantly feeding fuel into the system, which translates to serious savings on operating costs.
Why the Vertical Carbonization Kiln Wins for Startups
1. Lower Barrier to Entry
For entrepreneurs watching their budget, the vertical carbonization kiln offers an accessible entry point. Semi-automatic vertical furnaces typically range from $5,000 to $12,000, while horizontal carbonization furnaces can cost $8,000 to $18,000. One of my contacts started with a single vertical unit for under $10,000 and was producing marketable charcoal within weeks.
2. Impressive Yield Rates
The numbers speak for themselves. Modern vertical carbonization kilns can achieve charcoal yields of 40% to 45% with clean, consistent quality. Compare this to traditional earth kilns that often yield below 25% with significant quality variation.
3. Versatility Across Raw Materials
One of the biggest headaches for new producers is sourcing consistent raw materials. The vertical carbonization kiln handles virtually any biomass: wood logs, branches, coconut shells, nut shells, bamboo, sawdust briquettes—you name it. What’s more, you don’t need to pre-crush large materials. The kiln takes whole logs and large branches as they are.
4. Space-Saving Design
Factory space is expensive. Vertical kilns have a much smaller footprint than horizontal systems. You can fit multiple units in the space required for a single horizontal carbonization furnace, scaling your production without expanding your facility.
5. Environmental Compliance
This mattered more to me than I initially expected. Modern vertical carbonization kilns come with gas recycling systems that capture and reuse combustible gases. Traditional kilns simply release these gases—along with smoke and particulates—into the atmosphere. With tightening environmental regulations worldwide, this feature could save you from fines and shutdowns.
Vertical vs. Horizontal: The Real Difference
Many people ask me why I recommend vertical over horizontal carbonization equipment. Here’s what I’ve learned:
Vertical kilns use a hoisting structure where materials stack vertically. They offer smoother operation and less wear on the furnace lining. The vertical design naturally promotes even heat distribution and temperature control.
Horizontal carbonization furnaces typically have larger processing capacities and can be more easily automated. However, they come with higher upfront costs, larger space requirements, and more complex maintenance.
For most startups, the vertical carbonization kiln provides the perfect balance—affordable entry with room to scale.
Real-World Success: What Production Actually Looks Like
Let me share a real case that illustrates what’s possible. A trading company in Myanmar recently started a charcoal production line with a $40,000 budget. They purchased two SL-C1500 vertical carbonization furnaces, each with a 1-ton batch capacity.
Their first carbonization cycle took about 9 hours and produced 1,000 kg of high-quality charcoal. The charcoal had excellent hardness with no smoke emission issues. The customer was so satisfied they’re now planning to expand in the second half of the year.
What’s particularly noteworthy: each furnace only requires 50-80 kg of waste wood as fuel per batch. After the initial heating phase, the syngas takes over, dramatically reducing ongoing fuel costs.
The By-Products That Boost Your Bottom Line
Here’s something most beginners overlook: carbonization produces valuable by-products. The vertical carbonization kiln can recover wood vinegar and wood tar during the process. These aren’t waste—they’re additional revenue streams. Wood vinegar has agricultural applications as a natural pesticide and plant growth promoter. Wood tar finds use in industrial applications.
What Should You Look For When Buying?
Based on my research and conversations with manufacturers, here are the key specifications to consider when evaluating vertical carbonization furnace price and value:
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
| Feature | What to Look For |
|---|---|
| Capacity | 600-1,000 kg per batch for startup |
| Cycle Time | 6-10 hours per batch |
| Inner Liner Thickness | At least 8 mm for durability |
| Heating Source | Waste wood or gas (flexibility matters) |
| Configuration | Dual inner chambers for continuous production |
| Gas Recovery | Must-have for cost savings and compliance |
When planning your charcoal production plant cost, remember to factor in not just the equipment but also installation, training, and auxiliary machinery like crushers and dryers.
The Bottom Line
Starting a charcoal factory is a significant decision. The vertical carbonization kiln offers the best combination of affordability, efficiency, and quality for entrepreneurs entering this market. With yields of 40-45%, cycle times under 10 hours, and the ability to process diverse biomass raw materials, it’s the equipment that gives you the fastest path to profitability.
I’ve seen too many new producers make expensive mistakes by choosing the wrong equipment. Don’t be one of them. Do your homework, calculate your numbers, and invest in equipment that will grow with your business.
Frequently Asked Questions
Q1: What raw materials can a vertical carbonization kiln process?
It can process wood logs, branches, coconut shells, nut shells, bamboo, sawdust briquettes, and various biomass materials without requiring pre-crushing.
Q2: How long does one carbonization cycle take?
Typically 6 to 10 hours per batch, depending on the model and material moisture content.
Q3: What is the typical charcoal yield from a vertical carbonization kiln?
Modern vertical kilns achieve yields of 40% to 45% with consistent quality.
Q4: How much does a vertical carbonization kiln cost?
Vertical carbonization furnace prices range from $5,000 to $12,000 for semi-automatic models. Final pricing depends on capacity, specifications, and customization.
Q5: Is the vertical kiln better than a horizontal kiln for startups?
Yes, for most startups. Vertical kilns have lower upfront costs, smaller footprints, and smoother operation, while horizontal carbonization furnaces offer larger capacity but at significantly higher cost.
Q6: Does the kiln require continuous fuel input?
No. After the first hour, the kiln burns its own syngas, making it self-sustaining and reducing fuel costs.
Q7: What by-products can I recover?
Wood vinegar and wood tar can be collected and sold as additional revenue streams.
Q8: How much space do I need for a vertical carbonization kiln?
Vertical kilns have a small footprint compared to horizontal systems. A single unit typically requires about 2.2m × 2.2m of floor space.
Q9: Is the vertical carbonization kiln environmentally friendly?
Yes. It features gas recycling systems that capture and reuse combustible gases, reducing emissions and meeting environmental standards.
Q10: Can I operate the kiln without electricity?
Some vertical carbonization models can operate without electricity, using biomass as the sole energy source.
Q11: How durable is a vertical carbonization kiln?
Quality units feature 8 mm-thick inner liners with high-temperature refractory materials, ensuring long-term durability.
Q12: What support do manufacturers provide?
Reputable manufacturers offer installation guidance, remote technical support, and some provide on-site engineer visits for training.
