We’ve watched the global shift toward renewable energy push biomass pellets into the spotlight—especially across Europe, North America, and Southeast Asia. If you’re planning to build a wood pellet plant, choosing the right Industrial Biomass Pellet Mill isn’t just a purchase—it’s the cornerstone of your long-term profitability, directly tied to Biomass Pellet Production Efficiency. Ring die and flat die machines dominate the market, but their fit for heavy-duty production couldn’t be more different. We’re breaking down the key features of industrial biomass pellet mills to help you invest in equipment that matches your production goals and boosts Wood Pellet Plant Profitability.
With over 15 years as a leading manufacturer of industrial-grade pellet equipment, we’ve supported hundreds of wood pellet plants worldwide at Huaxin Machinery. We know firsthand that heavy-duty production demands more than just high output—it needs stability, Energy-Efficient Pellet Mill performance, and low total cost of ownership (TCO). In this article, we’re focusing on the critical features that make a top-performing Industrial Biomass Pellet Mill, comparing ring die and flat die technologies, and explaining why our ring die systems are the first choice for commercial operations chasing High-Capacity Pellet Production.
What Defines a High-Quality Industrial Biomass Pellet Mill?
An industrial biomass pellet mill stands apart from small-scale models because it’s built for nonstop, heavy-duty work. For wood pellet plants processing 1 ton or more per hour, these features are non-negotiable—they directly impact your Biomass Pellet Production Efficiency and operational costs:
1. Robust Construction for 24/7 Operation
Heavy-duty production means your machine has to stand up to constant pressure and friction. That’s why we use high-wear-resistant steel for core components like dies and rollers in our industrial pellet mills. Our ring die pellet mills, for example, feature 40CrNiMoA alloy steel for rings and rollers—extending their service life to 5,000–8,000 hours, which far outpaces the 1,000–2,000 hours of standard flat die machines. We also reinforce the frame to cut down on vibration, a common culprit behind component failure during continuous operation.
2. High Output with Consistent Efficiency
For commercial wood pellet plants, output equals revenue—that’s simple. Your Industrial Biomass Pellet Mill needs to deliver steady High-Capacity Pellet Production without wasting energy. Our HX-R series ring die pellet mills range from 1 to 15 tons per hour, while most flat die models top out at just 0.1–1 ton. The difference comes down to the ring die’s larger extrusion area and multi-roller design—they spread pressure evenly and process more raw materials at once, which is key to optimizing your Wood Pellet Manufacturing Efficiency.
3. Energy Efficiency to Reduce Operating Costs
Electricity is one of your biggest ongoing costs in wood pellet production. A top-tier Energy-Efficient Pellet Mill should turn energy into extrusion force without waste. Our ring die machines use just 50–80 kWh per ton of wood pellets, compared to 80–120 kWh per ton for flat die models. That efficiency comes from three things: optimized motor power matching, precise die-roller clearance, and heat recovery from the extrusion process—this even helps lower drying costs if your raw material moisture is a bit high (up to 18%). Less energy use directly translates to better Wood Pellet Plant Profitability for you.
4. Versatile Raw Material Adaptability
Wood pellet plants often rely on a mix of raw materials—from sawdust and wood shavings to agricultural wastes like corn stover and rice husks. A versatile Industrial Biomass Pellet Mill should handle different materials with minimal tweaks—reducing your reliance on a single raw material source and cutting costs. Our ring die systems have replaceable dies with adjustable compression ratios (1:5 for hardwood, 1:8 for softwood), so you get consistent High-Density Wood Pellets no matter the raw material density. Flat die machines, though? They struggle with hardwood and high-fiber materials, leading to lumpy pellets and frequent jams.

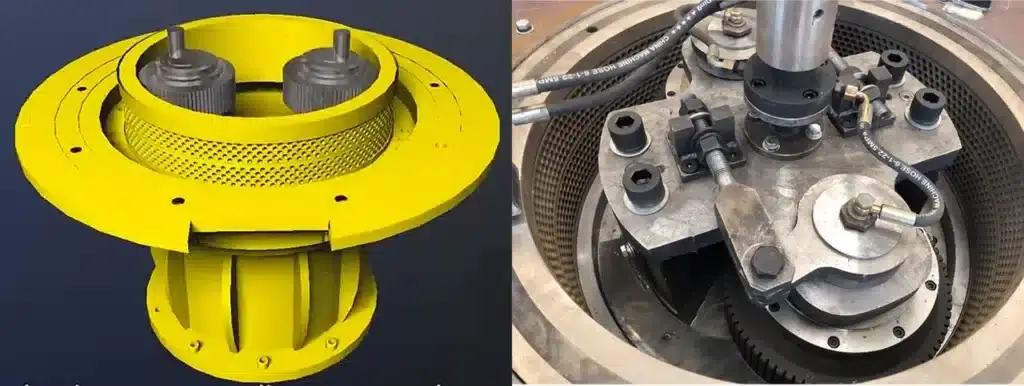

5. Easy Maintenance to Minimize Downtime
Downtime in heavy-duty production costs you money—plain and simple. Your industrial pellet mill needs a user-friendly design for quick maintenance, which is another way to maximize Biomass Pellet Production Efficiency. Our ring die pellet mills include quick-change die systems and centralized lubrication, so your operators can swap out wear parts in 30 minutes or less. We also keep downtime rates below 5%, compared to the 10–15% you’ll see with flat die models that need frequent component replacements. And our Biomass Pellet Mill Maintenance Tips help you extend service life even further.
Ring Die vs. Flat Die Pellet Mills: Which Is Better for Heavy-Duty Production?
Choosing between ring die and flat die pellet mills is the most important call you’ll make as a wood pellet plant investor. Flat die machines have lower upfront costs, but their design limits make them a bad fit for High-Capacity Pellet Production. We’ve put together a detailed comparison based on the key features above—focused on what matters for industrial-scale Wood Pellet Manufacturing:
1. Production Capacity: Ring Die Takes the Lead
As we mentioned earlier, ring die pellet mills are built for high-volume output. One of our HX-R5 ring die machines can produce 5 tons per hour, running 24/7 with barely any breaks. To hit that same output with flat die machines, you’d need 5–6 units—and that means more floor space, higher labor costs, and more maintenance headaches. If you’re targeting commercial sales or exports, ring die is the only way to go.
One of our favorite success stories: A wood pellet plant in Poland swapped 6 flat die machines for a single HX-R5 ring die mill. Their output stayed the same (5 tons/hour), but they cut labor costs by 70% and electricity costs by 35% in the first year alone.
2. Pellet Quality: Ring Die Meets Industrial Standards
Industrial buyers and export markets (like those requiring the EU’s ENplus A1 standard) demand High-Density Wood Pellets with consistent quality. Our ring die pellet mills turn out pellets with a density of 1.1–1.3 g/cm³ and a Tumbler Durability Index (TDI) above 97%—that means less than 3% breakage during transport, which meets global export requirements. Flat die machines? They produce pellets with 0.9–1.1 g/cm³ density and 90–95% TDI, which only works for small-scale, local use (like home heating) and can’t compete in commercial Biomass Pellet Markets.
3. Total Cost of Ownership: Ring Die Saves Money Long-Term
Flat die machines cost $2,000–$10,000 upfront (vs. $20,000–$150,000 for our ring die models), but their total cost of ownership (TCO) is way higher for industrial use—and that directly hits your Wood Pellet Plant Profitability. If you’re researching Commercial Wood Pellet Mill Cost, let’s break down the numbers for a 10,000-ton-per-year wood pellet plant:
- Electricity: Our ring die systems cost $7,500–$18,000/year; flat die machines cost $12,000–$36,000/year (based on $0.15/kWh).
- Maintenance: Ring die systems cost $5,000–$15,000/year (die/roller replacement every 6–12 months); flat die machines cost $10,000–$30,000/year (parts replacement every 1–3 months).
- Labor: Ring die systems need 1–2 operators per shift; flat die machines need 5–6, adding $40,000–$80,000/year in labor costs.
All told, our ring die system saves you $50,000–$120,000 per year—easily covering the higher upfront cost within 6–12 months. That’s why ring die mills are the clear choice if you’re serious about Commercial Biomass Pellet Production and long-term profitability.
4. Raw Material Flexibility: Ring Die Handles More Types
Wood pellet plants often deal with fluctuating raw material supplies—that’s why flexibility matters. Our ring die pellet mills can process softwood (pine, spruce), hardwood (oak, maple), agricultural wastes (corn stover, wheat straw), and even mixed materials. The adjustable compression ratio ensures each material is extruded perfectly, while flat die machines struggle with anything harder than softwood sawdust. This flexibility cuts your raw material costs by letting you use whatever’s locally available.
Key Considerations for Choosing Your Industrial Biomass Pellet Mill
When you’re picking an Industrial Biomass Pellet Mill for your wood pellet plant, focus on these factors to make the right investment—one that aligns with your High-Capacity Pellet Production goals:
1. Define Your Production Scale
If your target output is ≥1 ton/hour (commercial production), go with a ring die pellet mill. For small-scale use (≤0.5 ton/hour, like a farm or home), a flat die machine might work. Our sales team can help you calculate the perfect model based on your projected annual output and growth plans.
2. Analyze Your Raw Material Supply
Tell our team about your raw material type (wood species, agricultural waste), moisture content (10–15% is optimal), and particle size. We’ll customize dies and feed systems to match your specific materials, ensuring maximum efficiency and pellet quality every time.
3. Calculate Total Cost of Ownership (Not Just Upfront Price)
Don’t fall for low-cost flat die machines for industrial use. Ask for a detailed TCO analysis that includes electricity, maintenance, labor, and downtime costs—these are critical for understanding the real Commercial Wood Pellet Mill Cost. We provide transparent TCO reports so you can see exactly how our ring die systems deliver long-term value and boost your Wood Pellet Plant Profitability.
4. Check After-Sales Support
Heavy-duty production means you need reliable after-sales support. Choose a supplier with global service networks, fast spare parts delivery, and on-site training. At Huaxin, we offer 24/7 technical support, on-site installation and training, and a 1-year warranty on all components—with extended warranty options available too.

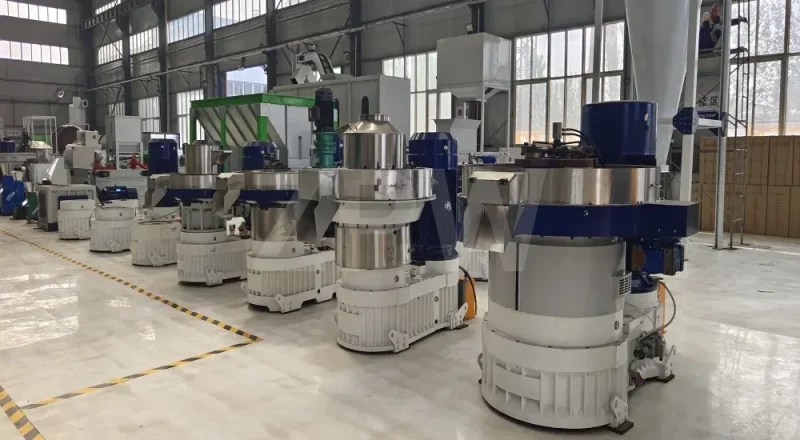

Huaxin’s Industrial Biomass Pellet Mill: Designed for Heavy-Duty Success
Our HX-R series ring die pellet mill is engineered to meet the demands of modern wood pellet plants—delivering the Biomass Pellet Production Efficiency and reliability you need to succeed. Here’s why investors worldwide trust us when they’re looking for an Industrial Pellet Mill for Sale:
- Proven High Output: 1–8 tons/hour, with 24/7 continuous operation capability—we’ve tested this in plants around the globe.
- Energy-Efficient Design: 50–80 kWh/ton, cutting your electricity costs by 30–40% compared to flat die machines.
- Durable Components: 40CrNiMoA alloy steel dies and rollers, with a 5,000–8,000 hour service life—built to last.
- Versatile Performance: Handles wood, agricultural wastes, and mixed materials with adjustable compression ratios—no more being stuck with one raw material.
- Easy Maintenance: Quick-change parts, centralized lubrication, and low downtime (≤5%)—so you keep production moving.
- Compliant with Global Standards: Produces High-Density Wood Pellets that meet ENplus A1, ASTM, and ISO requirements—so you can access international Biomass Pellet Markets.
Frequently Asked Questions (FAQs) About Industrial Biomass Pellet Mills
1. How long does an industrial biomass pellet mill last?
With proper maintenance (following our Biomass Pellet Mill Maintenance Tips), our ring die pellet mills have a service life of 10–15 years. Flat die machines typically last just 3–5 years due to lower-quality components—raising your long-term Commercial Wood Pellet Mill Cost.
2. Can the ring die pellet mill handle high-moisture raw materials?
The optimal moisture content is 10–15%, but our machine can process materials up to 18% moisture with minimal efficiency loss. For higher moisture levels (18–25%), we recommend pairing it with our biomass dryer to keep production smooth.
3. What is the delivery time for Huaxin’s industrial pellet mill?
We deliver standard models in 2–4 weeks; custom models (like those with specific compression ratios or output capacities) take 4–6 weeks. We prioritize urgent orders to help you start production as fast as possible.
4. Do you provide training for operating the pellet mill?
Absolutely. We offer on-site training for your operators, covering everything from machine operation and maintenance to troubleshooting. We also provide online technical support and training videos for ongoing reference—so you’re never stuck.
5. Can the pellet mill be integrated into an automated production line?
You bet. Our ring die pellet mills integrate seamlessly with feeding systems, dryers, coolers, sieves, and packaging machines to create a fully automated wood pellet production line. We’ll design the line layout based on your factory space and production goals—tailored just for you.
Take the Next Step to Build a Profitable Wood Pellet Plant
Choosing the right Industrial Biomass Pellet Mill is the first step toward a successful wood pellet business—one that delivers consistent High-Capacity Pellet Production and strong profitability. At Huaxin Machinery, we’re here to support you from equipment selection to production launch and beyond. Whether you need a single pellet mill or a complete automated line, we’ll customize a solution that fits your budget, raw materials, and output goals.
Reach out to us today to:
- Get a free, personalized quote for your Industrial Pellet Mill for Sale inquiry—no strings attached.
- Receive a detailed TCO analysis to calculate your Commercial Wood Pellet Mill Cost and Wood Pellet Plant Profitability.
- Schedule a virtual tour of our factory and see our pellet mills in action—live.
- Talk directly to our technical team about your raw material and production needs.
Contact us today. Let Huaxin Machinery be your partner in building a high-efficiency and profitable wood pellet production line.
