What Is a Wood Pelletizer Machine and How Does It Work?

Wood pelletizer machines are the backbone of biomass pellet production, transforming waste wood materials into dense, uniform pellets used for heating, energy, and animal bedding. As demand for renewable energy grows, these machines have become essential for sawmills, farms, and energy producers. But how exactly do they turn loose wood into compact pellets? This guide breaks down their design, working principle, and key components.

Introduction: Overview of Wood Pelletizer Machines

A wood pelletizer machine (or wood pellet mill) is a piece of equipment that compresses wood-based materials into small, cylindrical pellets (typically 6–10mm in diameter). These pellets are easy to store, transport, and burn—making them a popular alternative to coal or firewood.
Modern pelletizers range from small-scale machines (producing 500kg/h) for local use to industrial models (5+ tons/h) for commercial production. Regardless of size, all pelletizers share the same core function: using mechanical pressure and heat to bind wood fibers into solid pellets.
Overview of Wood Pelletizer Machines

Basic Working Principle Explained

Wood pelletizers rely on three key processes to form pellets: compression, heat generation, and die extrusion. Here’s how they work together:

  1. Compression: Wood materials (e.g., sawdust, wood chips) are fed into the machine, where rollers press them against a die (a metal plate or cylinder with small holes). The pressure reaches 80–120 MPa—enough to squeeze air and moisture out of the wood.
  2. Heat Generation: Friction between the rollers, die, and wood materials raises temperatures to 80–120°C. This heat softens lignin (a natural polymer in wood), which acts as a binder, holding the compressed fibers together.
  3. Die Extrusion: The compressed, heated wood is forced through the die’s holes, emerging as cylindrical pellets. As the pellets cool, the lignin hardens, locking their shape.
Basic Working Principle Explained

Key Components: How Each Part Contributes

A wood pelletizer’s efficiency depends on four core components working in harmony:

Key Components: How Each Part Contributes

1. Feeder System

  • Function: Controls the flow of raw materials into the pelletizing chamber. Most use augers (screw conveyors) to ensure a steady, even feed.
  • Importance: Too much material causes jams; too little reduces pressure and pellet density. Modern feeders have sensors to adjust flow automatically.

2. Rollers

  • Function: Controls the flow of raw materials into the pelletizing chamber. Most use augers (screw conveyors) to ensure a steady, even feed.
  • Importance: Too much material causes jams; too little reduces pressure and pellet density. Modern feeders have sensors to adjust flow automatically.

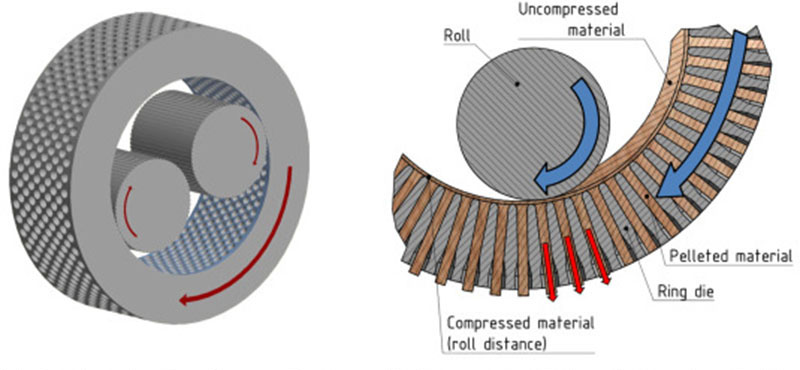

Rollers

3. Die

Function: The “mold” that shapes pellets. Dies have hundreds of holes (6–10mm diameter) and are made of hardened steel or alloy to withstand high pressure.

Types:

  • Flat die: A stationary circular plate with holes; rollers move across its surface (ideal for small-scale production).
  • Ring die: A rotating cylinder with holes in its wall; rollers press material against the inner surface (used in industrial machines for high output).

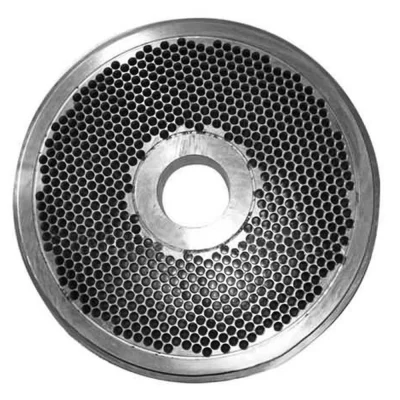

Flat die

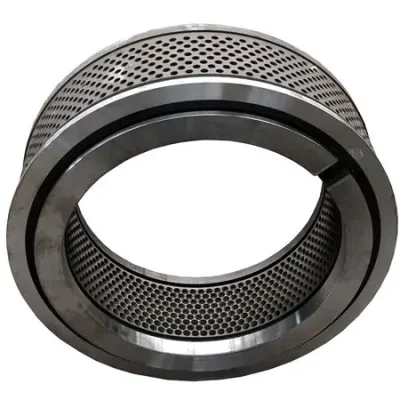

Ring Die

4. Motor

  • Function: Powers the rollers and feeder. Motor size (5–100kW) determines the machine’s capacity—larger motors drive higher compression and faster production.
  • Efficiency: Energy-efficient motors (IE3/IE4 rating) reduce electricity use by 10–15% compared to standard models.

Input Materials Suitable for Pelletizing

Wood pelletizers work best with dry, uniform materials. Ideal inputs include:

  • Sawdust: Fine particles (0.5–3mm) are easiest to pelletize—no pre-processing needed.
  • Wood chips/shavings: Must be ground to sawdust size first (use a crusher if needed).
  • Wood waste: Bark, plywood scraps, or recycled wood (remove nails/metal first to avoid damaging the die).

Moisture requirement: Materials need 10–15% moisture. Too wet (over 15%) causes soft, crumbly pellets; too dry (under 10%) leads to dust and breakage.

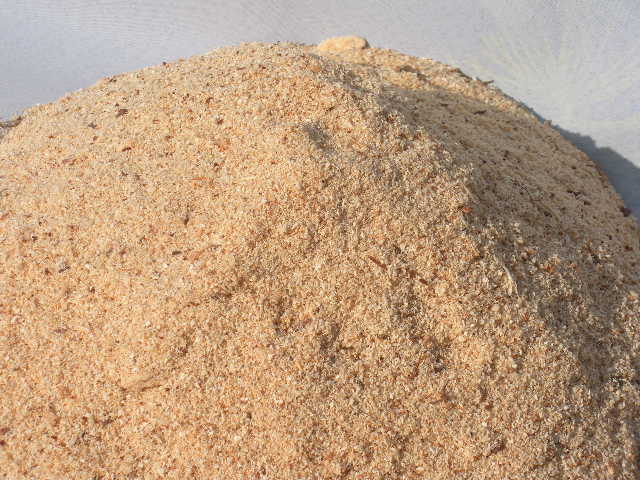

Sawdust
Wood waste

Output: Pellet Size, Density, and Standards

  • Size: Most pellets are 6–8mm in diameter and 10–30mm long (adjustable by changing the die). Smaller pellets (4mm) are used for animal feed; larger ones (10mm) for industrial boilers.
  • Density: High-quality pellets have a density of 600–700kg/m³—dense enough to burn efficiently and resist breakage during transport.
  • Standards: Industrial pellets must meet ENplus (European) or PFI (North American) standards, which specify density, moisture, and ash content. A pelletizer with a ring die produces pellets that meet these standards more consistently than flat die models.
Sawdust Briquettes vs. Wood Pellets
Pelletizing Performance Comparison

Summary: Why Understanding the Mechanism Matters

Knowing how a wood pelletizer works helps you:

  • Choose the right machine (e.g., ring die for high-density pellets, flat die for small-scale use).
  • Troubleshoot issues (e.g., crumbly pellets = too much moisture or worn rollers).
  • Optimize production (e.g., adjusting feeder speed to match material moisture).

Whether you’re a farmer recycling wood waste or an energy producer supplying pellets, this knowledge ensures you get the most out of your machine.

Ready to start producing wood pellets?

Huaxin Machinery offers wood pelletizers for every scale—from small flat die models to industrial ring die machines. Contact us for:
✅ Free advice on choosing the right pelletizer for your materials.
✅ Demonstrations of how our machines produce high-density pellets.
✅ Custom solutions (e.g., integrated crushers for wood chips).
