As the demand for biomass fuel continues to rise, wood pellet mills are becoming essential equipment in energy, agriculture, and forestry industries. However, with various types of pellet mills available, choosing the right one can be challenging. In this blog, we explore the main types of wood pellet mills—flat die and ring die—along with their features, advantages, and best-use scenarios. Whether you’re a small workshop or a large industrial plant, this guide will help you make an informed investment.
Flat Die Wood Pellet Mills: Ideal for Small-Scale Production
Flat die wood pellet mills are a popular choice for individuals and small businesses. The machine compresses sawdust or biomass powder into pellets using a flat die and rotating rollers. The raw material is fed from the top, and pellets are squeezed through holes in the die.
Advantages of Flat Die Pellet Mills:
- Compact Size: These machines are small and easy to move, perfect for limited workshop spaces.
- Simple Operation: User-friendly interface and minimal setup required.
- Affordable Price: Suitable for start-ups or low-budget operations.
- Best for Softwood and Low-Moisture Biomass: Works well with pine, fir, and other softwoods.
Limitations:
- Lower Production Capacity: Generally suited for under 1000 kg/h output.
- Uneven Pellet Quality: Due to simple mechanics, pellet density and uniformity can vary.
- Not Suitable for Large-Scale Production: High wear-and-tear under continuous use.
Best Application: Home heating pellet production, small farm biomass projects, and DIY biofuel workshops.
Ring Die Wood Pellet Mills: For Industrial-Grade Pelletizing
Ring die pellet mills are the go-to choice for large-scale and continuous production. In this type, material is fed into the conditioning chamber, then pressed through a circular die using rotating rollers.
Key Benefits:
- High Efficiency: Capable of producing 1–20 tons per hour.
- Consistent Pellet Quality: Pellets are dense, uniform, and suitable for commercial sale.
- Broad Material Compatibility: Can handle hardwoods, straw, rice husks, and more.
- Energy Efficient for Bulk Production: Less energy per ton of pellets produced.
Challenges:
- Higher Initial Cost: Advanced design and components come at a premium.
- More Complex Maintenance: Requires skilled operation and regular part replacements.
Best Application: Industrial biomass fuel production, large farms, commercial pellet factories, and biomass power plants.
Vertical vs. Horizontal Ring Die Pellet Mills: What's the Difference?
Ring die mills come in two configurations—vertical and horizontal. Each has unique design traits that affect performance.

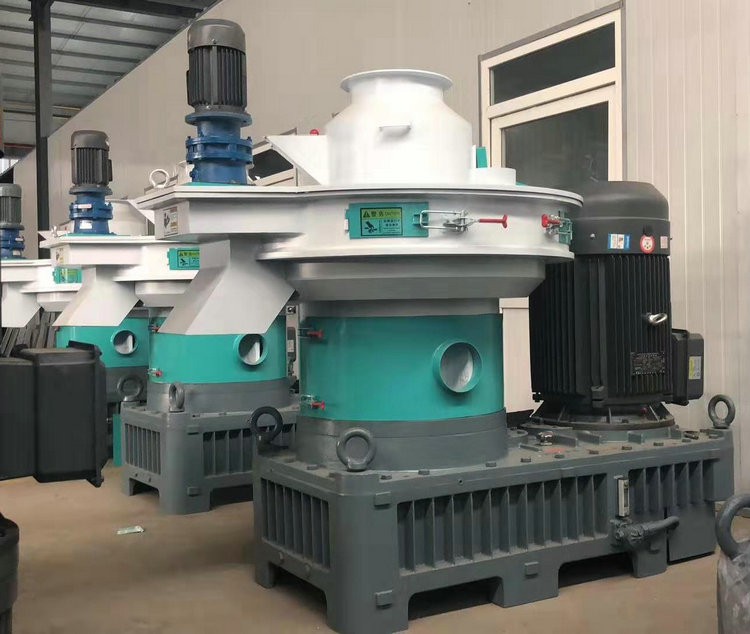

Vertical Ring Die Pellet Mills:
- Gravity-Based Feeding: Raw materials naturally fall into the die chamber, reducing clogging.
- Lower Energy Consumption: Efficient layout for energy savings.
- Easier Cleaning and Maintenance: Ideal for processing sticky materials.
Horizontal Ring Die Pellet Mills:
- Uniform Material Distribution: Better for processing fine and dry biomass.
- Higher Pressure: Delivers denser and more durable pellets.
- Well-Suited for Industrial Use: Handles diverse feedstocks and longer operation hours.
Which to Choose?
- Choose vertical for mixed or moist materials and moderate-scale applications.
- Choose horizontal for dry, hard materials and high-volume continuous output.
Choosing the Right Wood Pellet Mill for Your Needs
| Factor | Flat Die Mill | Ring Die Mill |
|---|---|---|
| Production Scale | <1000 kg/h | 1–20 t/h |
| Material Type | Softwood, sawdust | Hardwood, straw, husk |
| Budget | Low | Medium to High |
| Operation Complexity | Easy | Requires training |
| Business Goal | Home use/startup | Long-term commercial use |
Tip: Always evaluate your raw material availability, pellet demand, and business goals before deciding.
Conclusion
Choosing the right wood pellet mill is crucial for efficient production and long-term profitability. Flat die pellet mills are perfect for entry-level and small-scale needs, offering simplicity and lower cost. Ring die pellet mills, on the other hand, are built for large-scale, continuous operations with higher efficiency and product quality. Vertical and horizontal ring die models offer further customization depending on your material and energy needs.
