Roller Wood Powder Machine

Efficient production solutions for Wood Flour Mill

Roller Wood Flour Mill

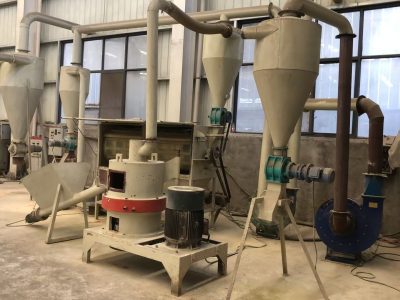

Roller Wood Powder Machine Overview

Roller Wood Powder Machine is a kind of high efficient wood processing equipment, which uses roller pressure and friction principle to grind wood, wood chips, bamboo and other wood materials into ultra-fine wood powder through multi-stage crushing and screening system.

Wood Powder Machine for Sale

Product Details

Features and Advantages of Roller Wood Powder Machine

Features and Advantages

High precision grinding

Support the processing of 100-500 mesh ultra-fine wood powder to meet the needs of high-end products, powder size uniformity without impurities.

Energy saving

Roller design with low energy consumption, the material can reach high fineness in one pass, and the efficiency is 30% higher than the traditional equipment.

Environmental protection

The wood flour mill is equipped with a dust removal system, which can effectively reduce dust pollution, while the noise control is also in line with environmental standards.

Durable

The core parts of the wood flour mill are made of wear-resistant materials, which are sturdy and durable, with low maintenance cost, and suitable for long time continuous work.

Technical Parameters of Roller Wood Powder Machine

Main Technical Parameters

Modle Main Motor(kw) Speed (r/m) Capacity (kg/h) Feed size(mm) Grain size (mesh)
HXWF500 18.5 3200 40-150 <30 30-500
HXWF700 22-30 3200 60-300 <30-35 30-500
HXWF800 30-37 3000 80-500 <30-40 30-500
HXWF1000 45 2900 100-750 <40-60 10-500
Roller Wood Powder Machine

Working Principle of Roller Wood Powder Machine

Working Principle

The Roller Wood Powder Machine works on multiple rollers. After entering the machine, the wood is pushed by the rotating feed rollers to the grinding rollers area. The grinding rollers rotate relative to each other at different speeds or turns, utilizing the squeezing force, friction force and shear force generated by the teeth and bumps of the roller surface to gradually crush and grind the wood and turn it into wood powder, which is then discharged from the corresponding outlet after being screened by the screen mesh.

Application Scenarios of Roller Wood Powder Machine

Application Scenarios

Chemical industry

Wood flour mills are used to prepare high-precision wood flour, which can be used as coatings, fillers or catalyst carriers for industrial needs.

Pharmaceutical industry

Processing of wood derivatives for the extraction of traditional Chinese medicines, filling of pills and medical excipients.

Food industry

Making natural food additives such as wood flour spices and flavouring powders to meet food grade standards.

Paper & Crafts

Producing high quality wood pulp and environmentally friendly process powders to increase the added value of paper products and handicrafts.

Successful Cases of Roller Wood Powder Machine

Successful Cases

Roller Wood Powder Machine

A food enterprise in the Philippines

Using a roller type wood flour mill to produce high-precision wood flour seasoning, the output has increased by 50%, and the purity of the wood flour has reached more than 98%.

Roller Wood Powder Machine

A pharmaceutical factory in Japan

A pharmaceutical company in Japan has increased production by 30 per cent with a wood flour mill that helps to prepare drug-filled wood flour.

Roller Wood Powder Machine

A paper-making enterprise in Indonesia

Using a roll mill to produce wood pulp powder has resulted in a significant improvement in paper quality and a reduction in raw material waste.

Frequently Asked Questions.

The machine is suitable for a wide range of wood materials, including wood chips, wood chunks, bamboo, fruit shells, bark, and more. The machine performs equally well with dense or hard materials.

The range of wood powder fineness is from 30 mesh to 500 mesh, which can be controlled by adjusting the screen and crushing parameters to meet different precision requirements.

The equipment is more suitable for dry wood processing. High humidity feedstock needs to be pre-dried and it is recommended that the humidity be kept below 15% to ensure efficiency and powder quality.

The equipment is equipped with a high efficiency dust removal system, which can significantly reduce dust emissions, superior environmental performance, suitable for indoor or centralised processing environment.

Yes. We can customise the feed opening size, screen specification, crushing system configuration and so on according to the user’s needs to ensure that the requirements of specific application scenarios are met.

Roller Wood Powder Machine
