Wood Powder and Bamboo Powder Production Line
Automatic Fine Wood Powder Making System for Industrial Use
Wood Powder and Bamboo Powder Production Line & Successful Cases Overview
Our industrial wood powder production line is a fully automated processing system that turns all types of wood waste into high-fineness wood powder (wood flour) with a particle size of 30–100 mesh. This finely ground powder is a staple in incense stick production, mosquito coils, wood-plastic composite (WPC) manufacturing, bioenergy fuel production, animal feed additives, and cosmetic raw materials. Our bamboo powder production line follows the same high-efficiency design, converting bamboo waste into consistent bamboo powder for eco-friendly industrial applications.
Annual Production Capacity of Wood Powder and Bamboo Production Line
Annual production capacity
| Model | Capacity | Application Scenario |
|---|---|---|
| HXWP-500 Small Line | 300–800 kg/h | incense stick factory wood powder production, lab use |
| HXWP-1000 Standard | 1–2 t/h | MDF board wood powder production, fine biomass fuel manufacturing |
| HXWP-2000 Industrial | 3–5 t/h | export-grade wood powder supply, large-scale industrial wood powder production |
Equipment Configuration of Wood Powder and Bamboo Production Line
Equipment Configuration
A complete wood powder production line is built to process raw biomass materials—including sawdust, wood chips, logs, bamboo, and agricultural residues—into fine and uniform wood powder. This versatile powder is used across incense stick production, biomass fuel, wood-plastic composite (WPC) manufacturing, and agricultural fertilizer carrier applications. Here’s the core equipment that makes up our production lines:
1. Raw Material Feeding and Pre-treatment
- Raw Material Storage Silos for Wood Powder Production: Custom-built for different materials (sawdust, bamboo chips, branches) to keep feeding steady for non-stop production.
- Automated Feeding Conveyor for Wood Powder Line: Belt conveyor systems that maintain continuous material flow, cutting down on manual labor.
Impurity Removal Vibrating Screen: Filters out stones, plastic, and metal to protect downstream gear and ensure clean input for high-quality wood powder production. - Wood Crusher / Drum Chipper for Pre-crushing: Reduces large materials down to 5–10mm chips—perfect for drying and grinding, and a must for consistent high-quality wood powder production.
2. Drying Section
- Energy-Efficient Rotary Drum Dryer / Flash Dryer for Wood Powder: Drops raw material moisture to 8–12%, which is ideal for fine wood powder production (no clumping, better grinding efficiency). Heat can come from biomass burners, gas, or coal.
3. Grinding & Pulverizing Section
Industrial Wood Powder Grinder (Hammer Mill / Blade Mill): Grinds dried materials into 30–80 mesh powder for everyday uses like fertilizer carriers and biomass fuel.
Ultrafine Wood Powder Pulverizer (Optional): Makes 100–300 mesh ultra-fine wood powder for premium applications like WPC board production or cosmetic carriers.
4. Screening and Mixing Section
Mesh Classification Vibrating Sieve for Wood Powder: Sorts powder into your needed mesh sizes (30–60, 60–100, 100–200 mesh) for precise end-use matching.
Double Shaft Paddle Mixer for Wood Powder: Blends in additives or binders evenly—great for creating custom wood powder blends.
5. Packaging and Palletizing
Automatic Wood Powder Bagging Machine: Handles 10kg–50kg bags with ±0.2% weighing accuracy, perfect for export-ready wood powder packaging.
Automated Palletizing Machine for Wood Powder: Stacks filled bags onto pallets automatically, streamlining warehousing and shipping.
6. Dust Collection System
Pulse Jet Bag Dust Collector for Wood Powder Line: Catches fine dust during crushing, grinding, and screening to keep operations clean and meet environmental standards for wood powder production.
Cyclone Dust Collector (Optional): Removes coarse particles before the bag filter to extend filter life and cut maintenance costs.
7. Control System (Optional)
PLC Intelligent Control System for Wood Powder Production Line: Monitors the entire line in real time, boosting efficiency and slashing labor costs for fully automated wood powder production.
Production Process of Wood Powder and Bamboo Production Line
Production Process
1. Raw material feeding for Wood Powder Production
Feeding conveyors or screw feeders deliver sawdust, wood chips, or bamboo chips steadily—laying the groundwork for uniform wood/bamboo powder production.
2. Coarse crushing for Wood Powder Pre-processing
Heavy-duty wood crushers break down large raw materials (logs, pallets) into 5mm particles, a critical step for achieving consistent wood powder fineness.
3. Drying system (optional) for Moisture Control
Drum dryers or airflow dryers lower material moisture to 8–12%, which prevents clumping and makes for smooth fine wood powder grinding.
4. Fine wood powder grinder (Core Equipment)
The star of the line: our industrial-grade wood powder making machine. It uses multi-blade impact and airflow separation to grind materials into 30–300 mesh high-purity wood/bamboo powder.
5. Powder collection system
Cyclone separators and pulse dust collectors filter fine particles, hitting a 99% collection rate and complying with global environmental standards for wood powder production.
6. Finished product unloading
Finished powder is stored in silos or auto-packaged for easy transport or resale—ideal for bulk wood powder supply and export.
Raw Material Type of Wood Powder and Bamboo Production Line
Raw material type
1. 🌲 Sawdust and Wood Shavings
Fine particles from sawmills, carpentry shops, or furniture factories. Their small size, low moisture, and consistency make them perfect for low-cost wood powder production.

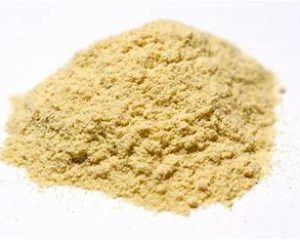

3. 🎋 Wood and Bamboo Waste
Wood chips, sawdust, bamboo strips, shavings, and powder can be ground into bamboo wood powder or pure bamboo powder—great for incense, WPC panels, and eco-friendly products.
5. 🥥 Coconut Husk and Palm Fiber
Walnut shells, peanut shells, almond shells, and apricot pits produce durable abrasive wood powders—used in polishing media, bio-composites, and even activated carbon production.
2. 🌳 Tree Branches and Wood Logs
Collected from forest thinning, landscaping waste, or timber offcuts. These need crushing and chipping first, and work well for wood flour manufacturing and bio-filler uses.
4. 🌾 Agricultural Crop Residues
Corn stalks, wheat straw, rice husk, and cotton stems (rich in lignocellulose) can be turned into agricultural biomass powder for organic fertilizers or pellet fuels—maximizing waste reuse.

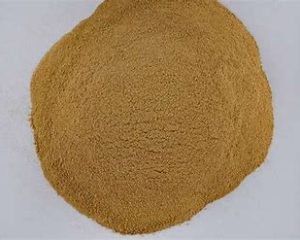

6. 🥜 Peanut Shells and Nut Shells
Walnut shells, peanut shells, almond shells, and apricot pits produce durable abrasive wood powders—used in polishing media, bio-composites, and even activated carbon production.
Finished Product Specifications of Wood Powder and Bamboo Production Line
Finished Product Specifications

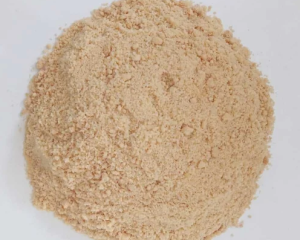

🎯 Mesh Size Range
30–60 mesh: pellets, fertilizer carrier，60–100 mesh: WPC, adhesives，100–200 mesh: incense, cosmetics，200+ mesh: activated carbon, pharma fillers
🌡️ Moisture Content
Moisture content is 8–12% for improved storage, combustion, and compatibility with composite materials.
🧪 Purity and Cleanliness
Impurities <0.2% via screening. Natural color (light brown–beige). Mild scent, no chemicals unless specified.
📦 Packaging Options
Available in 10–25kg bags, 50kg kraft/plastic bags, or 1-ton jumbo bags. All packaging is sealed and export-ready.

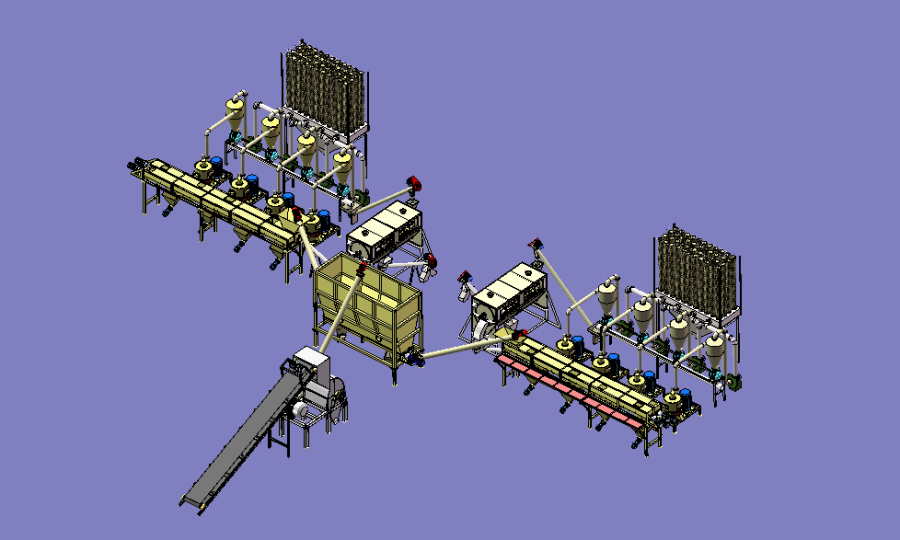

Schematic Diagram of Production Process of Wood Powder and Bamboo Production Line
Production process diagram
Successful Cases of Wood Powder and Bamboo Production Line
Successful Cases
1,000 kg/h Incense Wood Powder Line in India
Industry: Agarbatti (Incense Stick) Manufacturing | Raw Material: Mixed sawdust | Final Mesh Size: 100–200 mesh
Our custom incense wood powder production line delivered 99% powder uniformity, meeting local incense makers’ strict quality rules and boosting their output by 30%.
1,500 kg/h Bamboo Wood Powder Line in Vietnam
Industry: Biodegradable Plastics & WPC | Raw Material: Bamboo chips | Final Mesh Size: 60–80 mesh
This bamboo powder production line for WPC cut raw material waste by 25% and made eco-friendly bamboo powder that’s perfect for biodegradable plastic production.
800 kg/h bamboo powder production line in Sichuan, China
Industry: Disposable tableware pressing | Raw materials: Bamboo slices | Final mesh size: greater than 200 mesh
This ultra-fine bamboo powder production line made food-grade bamboo powder that meets national safety standards for disposable tableware—enabling local mass production.
